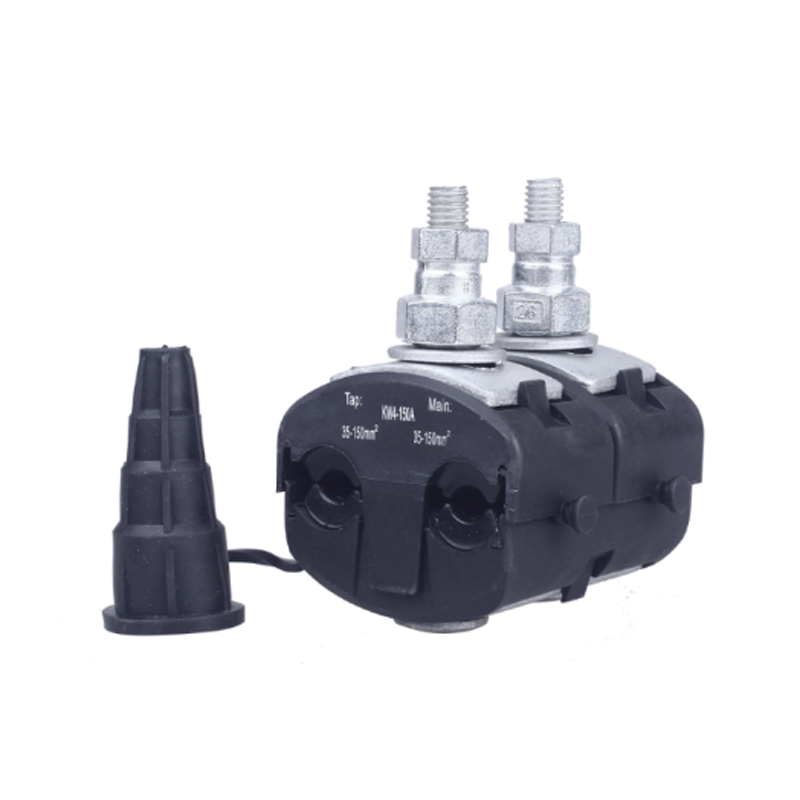

HPC150/150-B
HANSYEN
Product Description

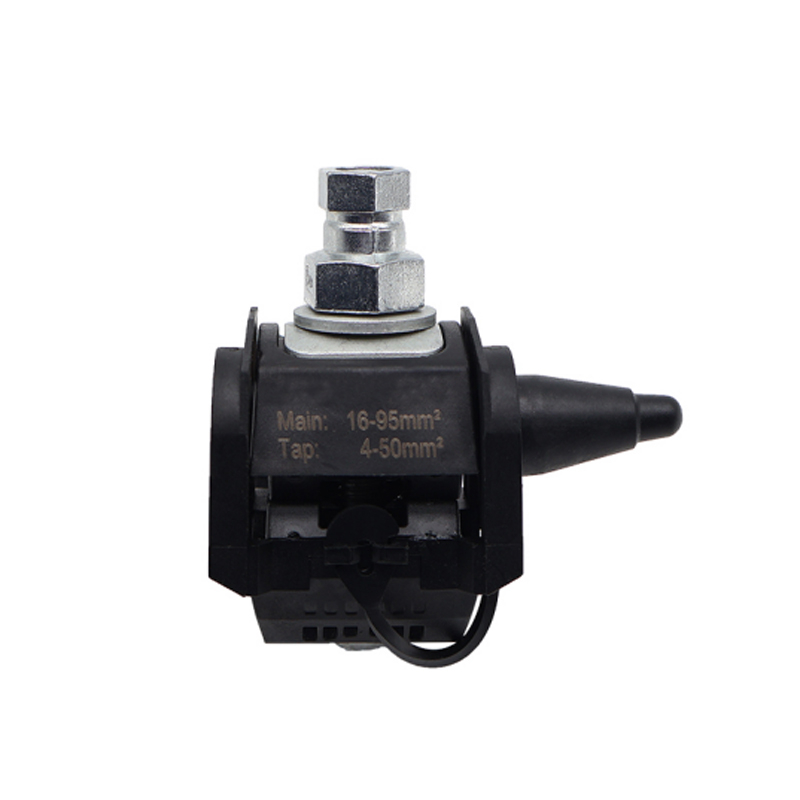

KV Insulation Piercing Connector
Features:
HANYSEN Insulation Piercing Connector used for copper or aluminum conductors.
Tin Plated Copper Contact teeth pre filleld with silicone lubricant.
The bolts are tightened until the head shears off, the teeth of the contact blades penetrate the insulation and establish a perfect contact.
Material: UV protected PA66 and Tinned Copper Alloy or Aluminum Alloy
Temp. Rating: -55°C to 55°C
Max Voltate: 600V

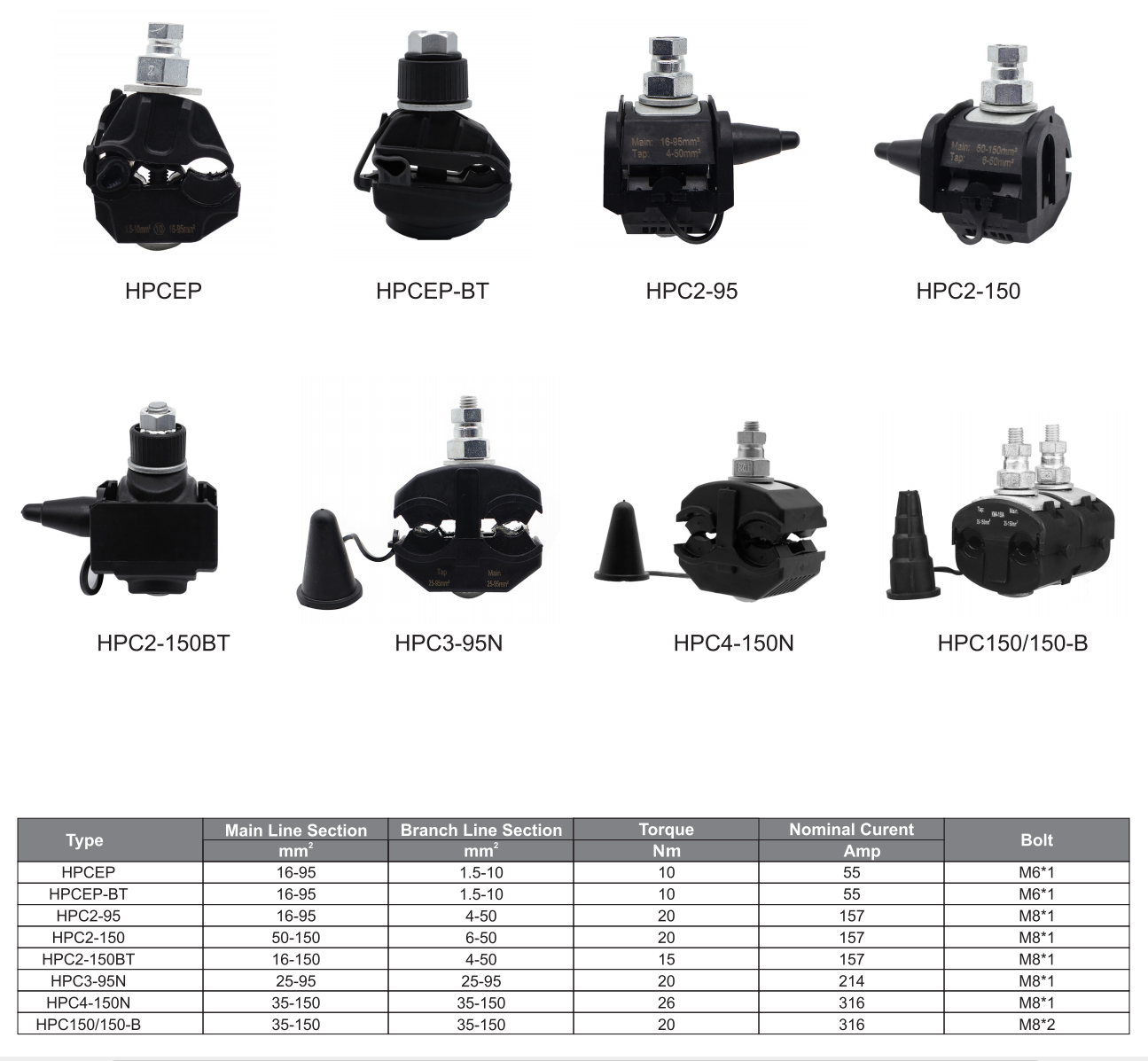

Main Line Section 35-150
Branch Line Section 35-150
Current: 316Amp
Color:Black
Standard:EN50483
