Product Description

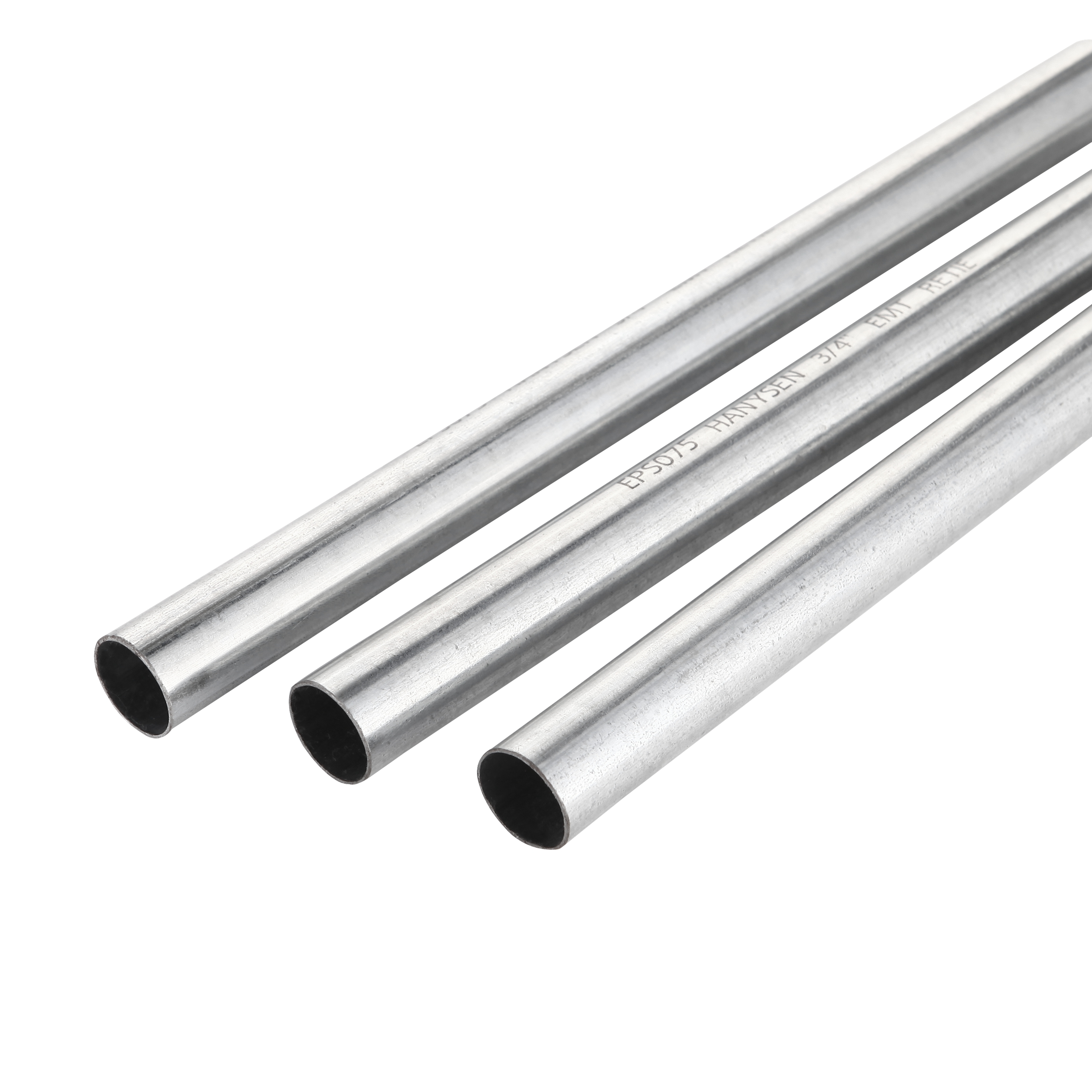

EMT conduit is rigid, thin-walled, unthreaded ERW tube used as a metal raceway for protecting and routing of electrical wiring. Both the outside and inside surfaces are galvanized for corrosion resistance.
CAT# | TRADE SIZE | ID | OD | Thick(1) | Thick(2) | Thick(3) |
EPS050 | 1/2" | 17.93 | 15.8 | 1.07 | 1 | |
EPS075 | 3/4" | 23.42 | 20.93 | 1.24 | 1.1 | |
EPS100 | 1" | 29.54 | 26.64 | 1.45 | 1.3 | |
EPS125 | 1-1/4" | 38.35 | 35.05 | 1.65 | 1.4 | |
EPS150 | 1-1/2" | 44.2 | 40.89 | 1.65 | 1.5 | |
EPS200 | 2" | 55.8 | 52.5 | 1.65 | 1.5 | |
EPS250 | 2-1/2" | 73.03 | 69.37 | 1.83 | 1.83 | |
EPS300 | 3" | 88.9 | 85.24 | 1.83 | 1.83 | |
EPS350 | 3-1/2" | 101.6 | 97.38 | 2.11 | 2.11 | |
EPS400 | 4" | 114.3 | 110.08 | 2.11 | 2.11 |
