Product Description

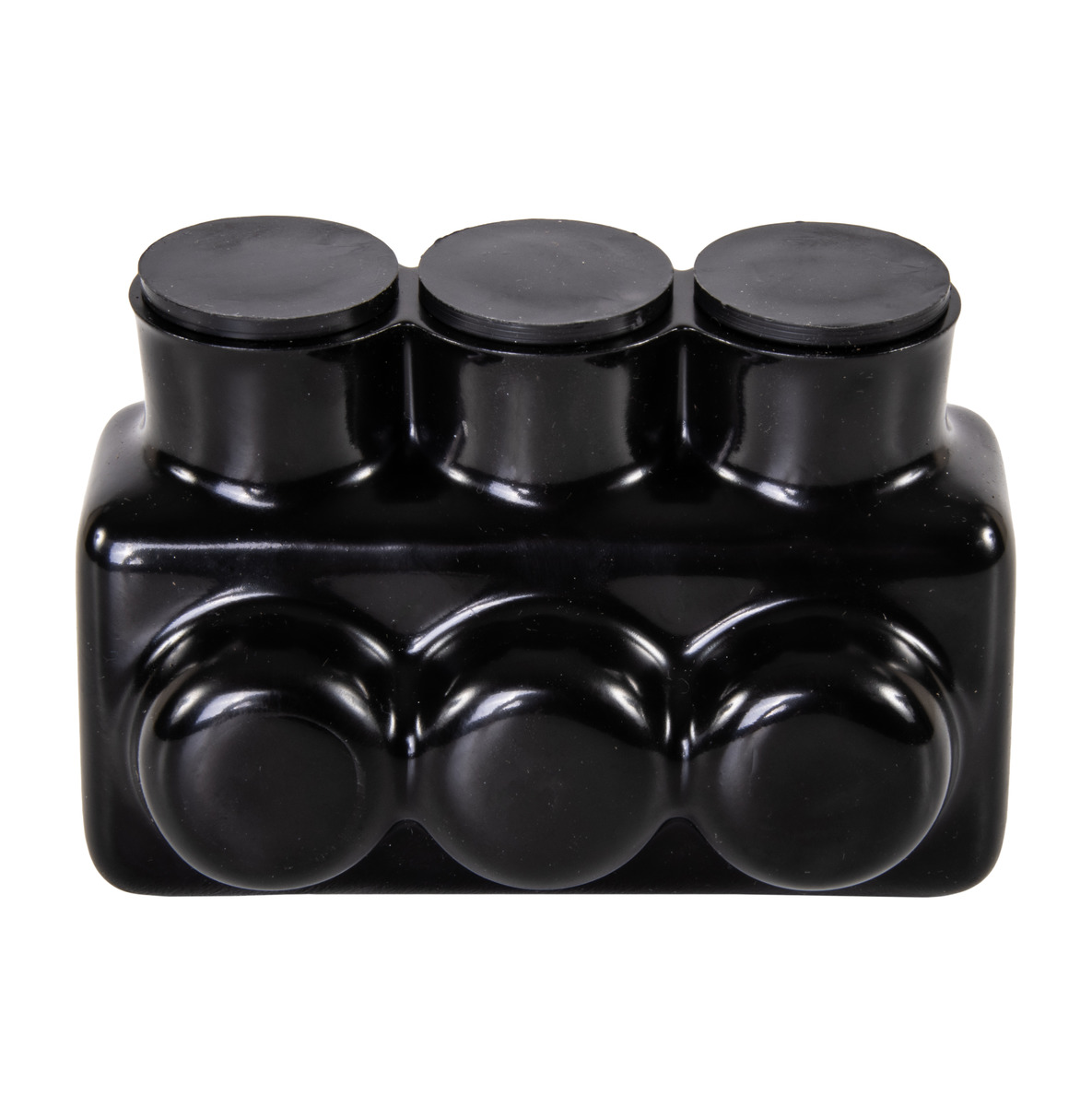

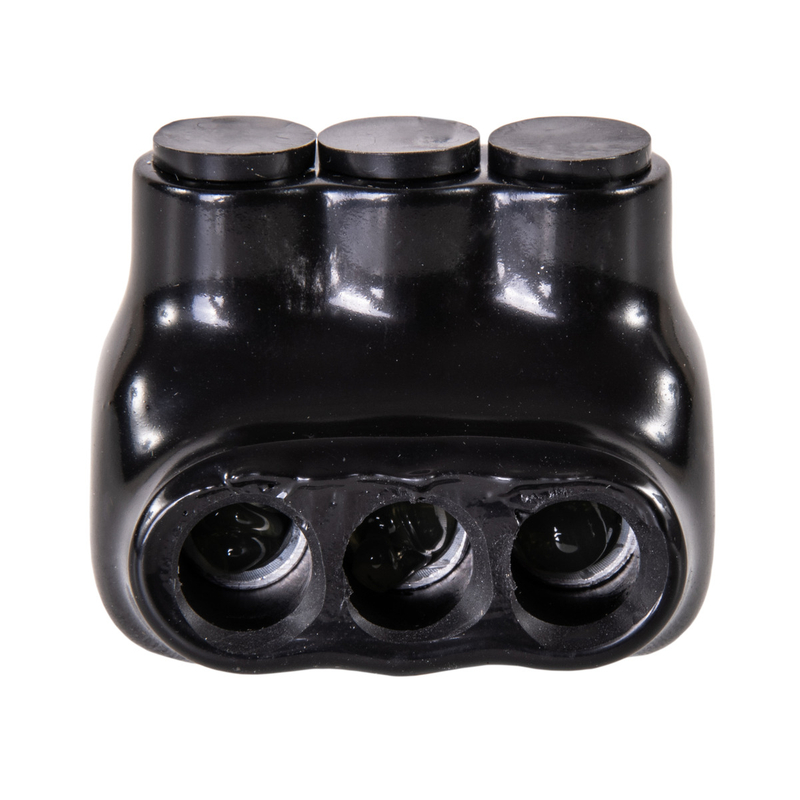

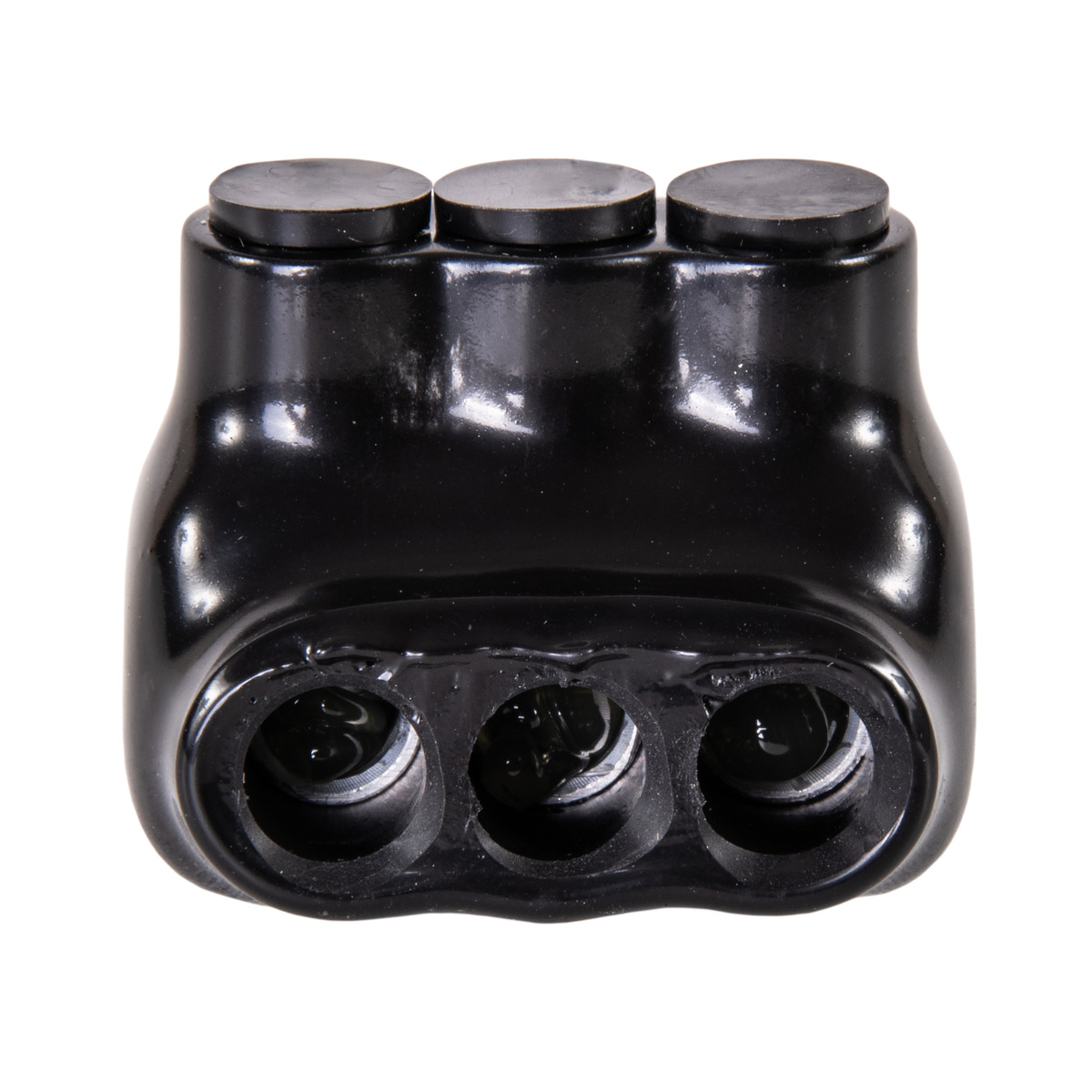

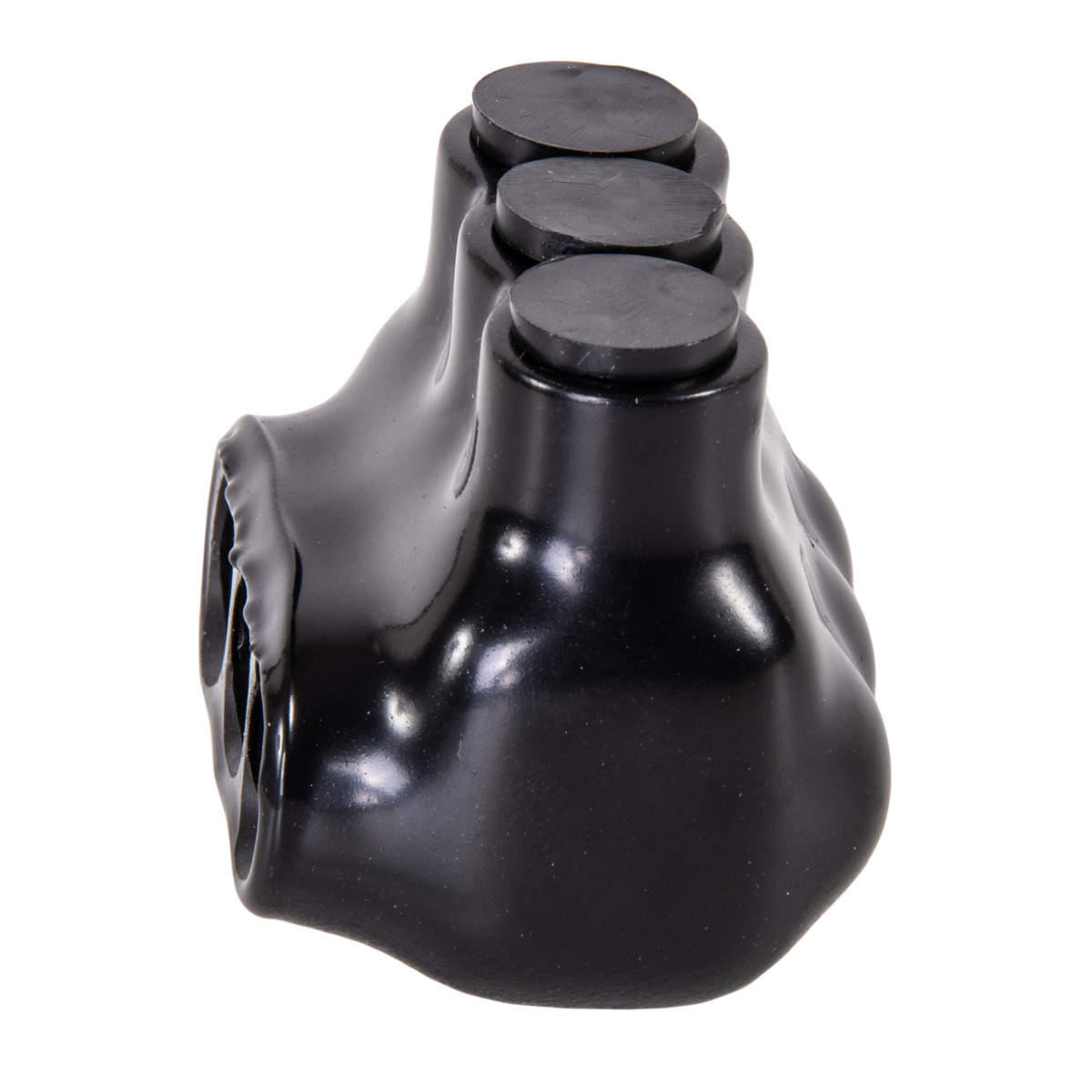

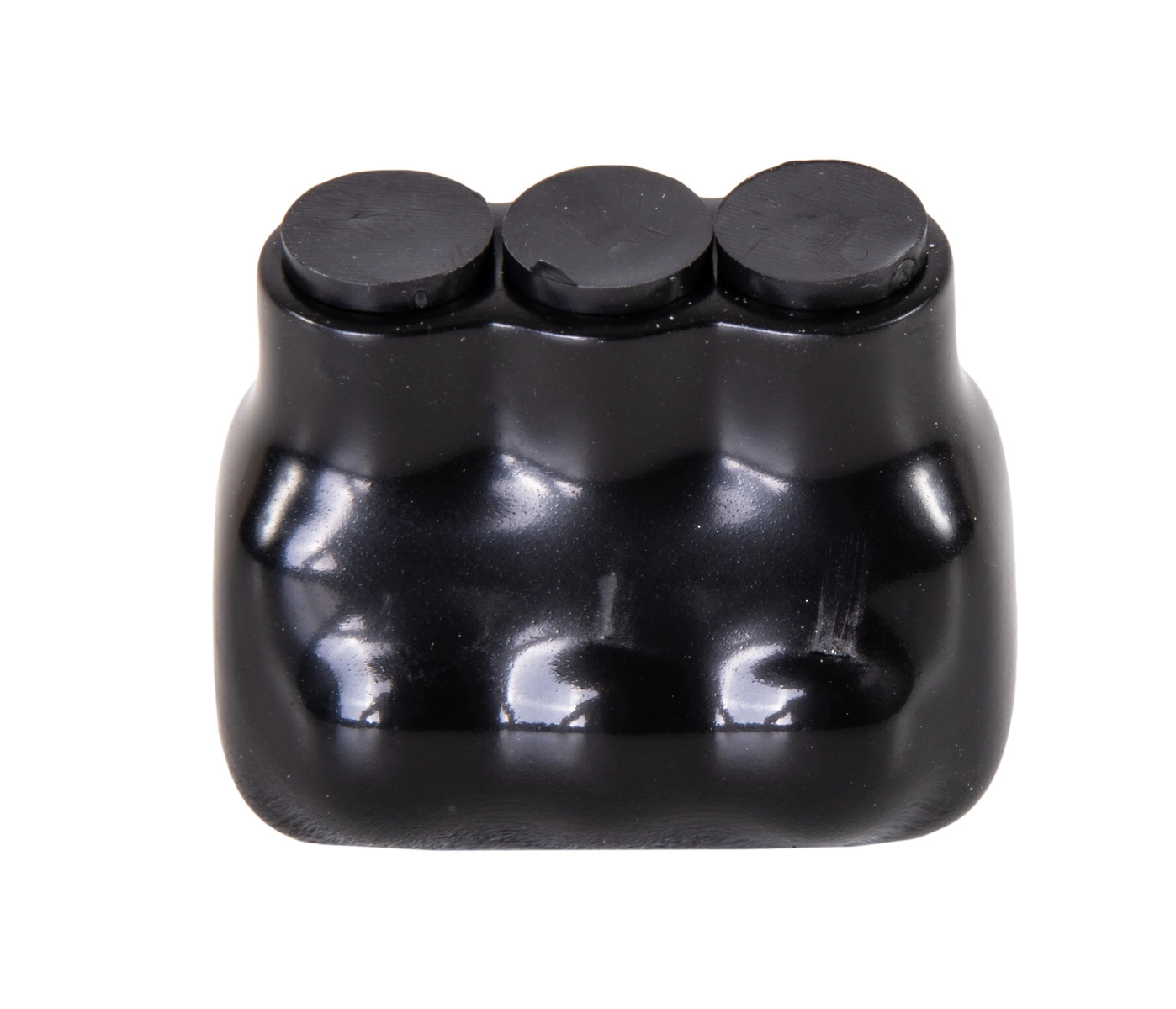

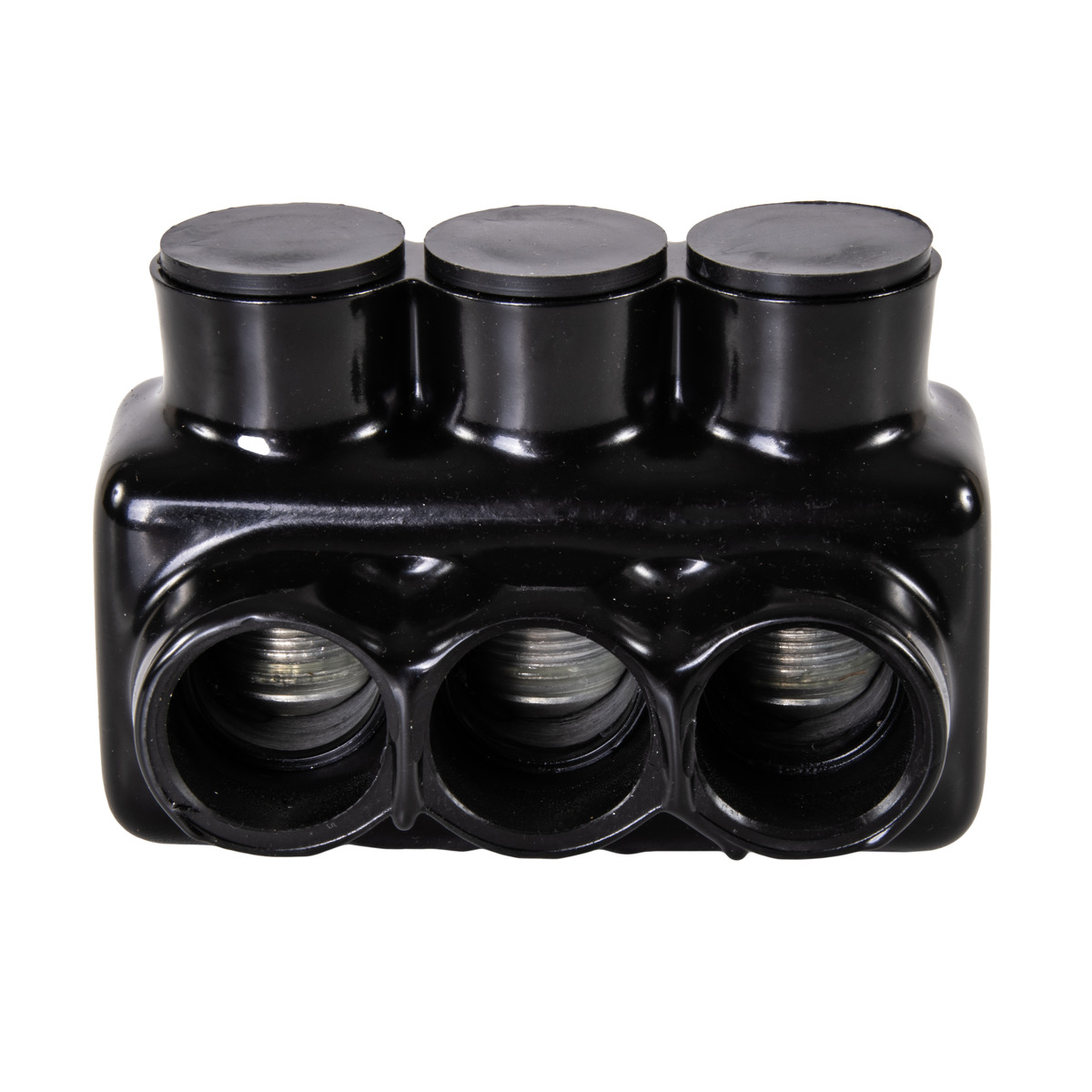

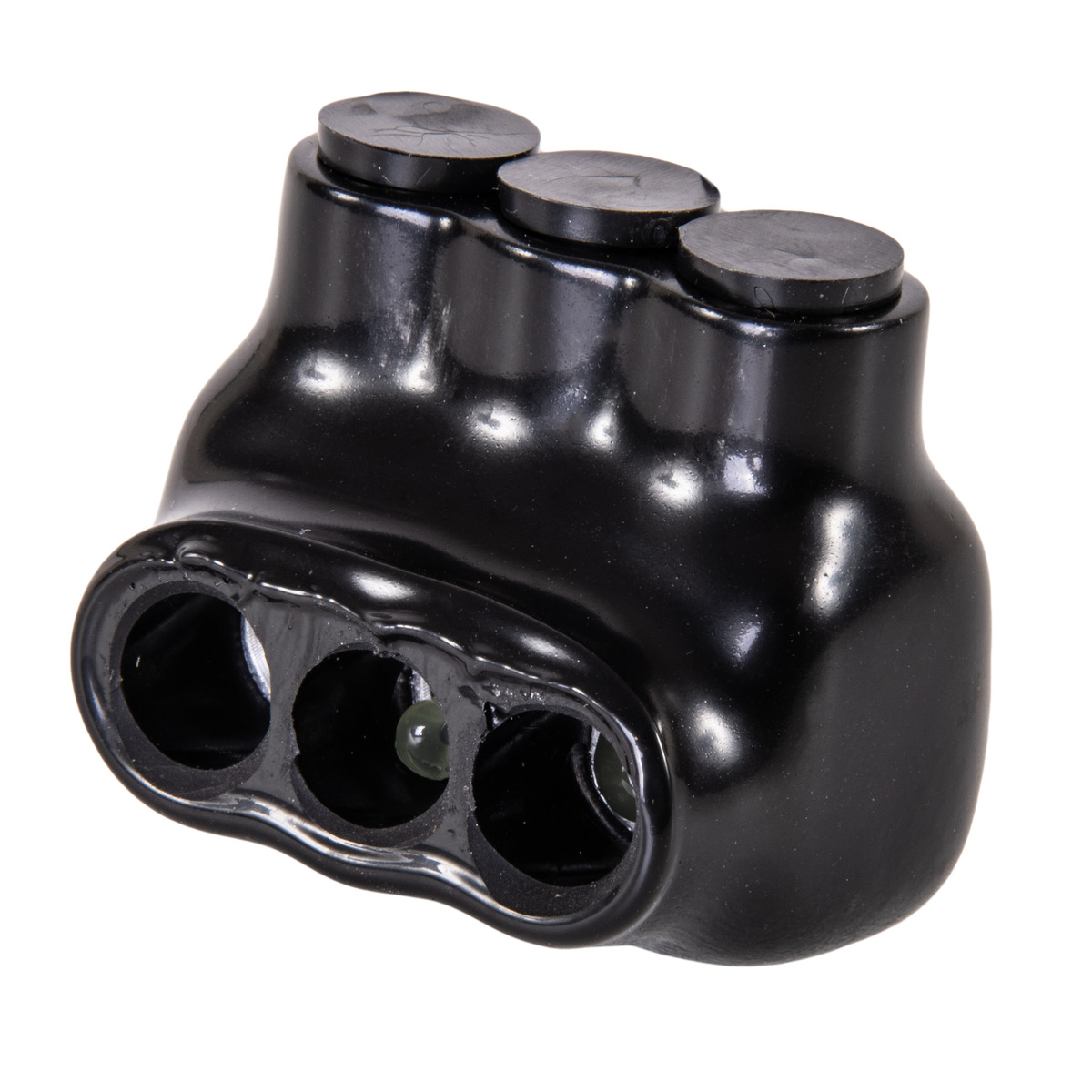

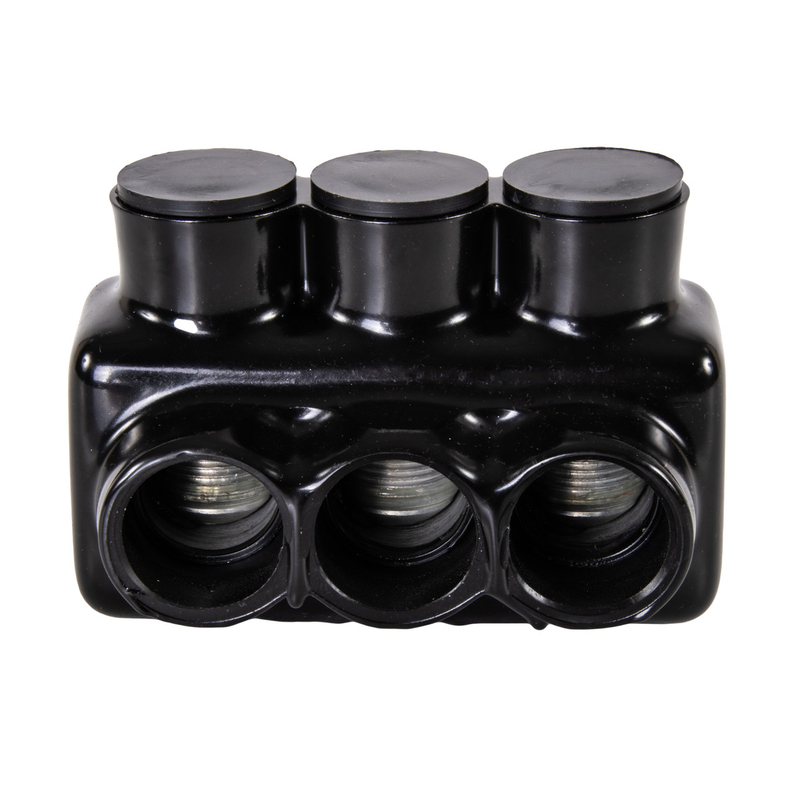

| Features | HANYSEN Pre-Insulated Connectors used for copper or aluminum conductors. Easier installation without tape or additional tools at wet or dry locations. Removable plugs prevent infiltration of dirt or debris. High dielectric strength insulation is abrasion, chemical and UV resistant. | |||||
| Material | 6061-T6 Aluminum | |||||
| Insulation | Rugged High-Dielectric Plastisol Dipped Coating | |||||
| Temp. Rating | -45°C to 90°C | |||||
| Max Voltate | 600V | |||||
| Color | Black | |||||
| Wire Ranges | #14 - 750 MCM | |||||
| UL | 486B Dual Rated CU9AL ANSI C119.4 | |||||

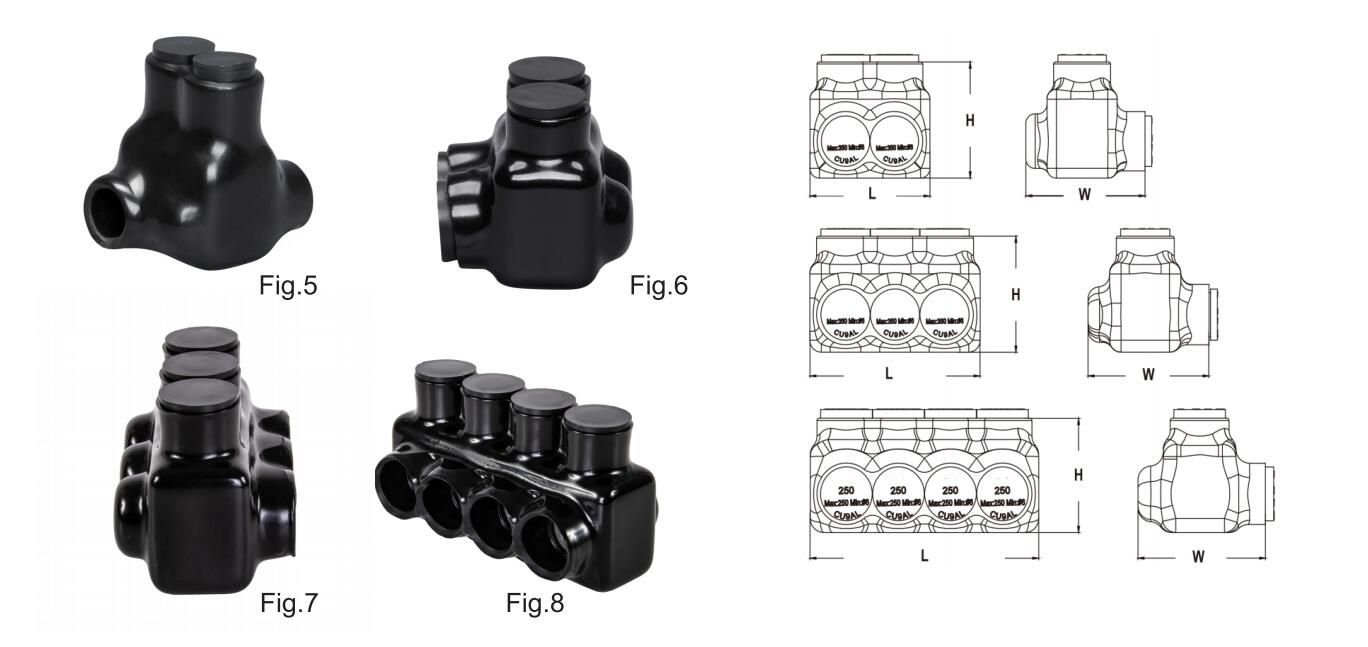

| CAT# | Fig. No. | Wire Range | Size (In.) | Strip Length | ||
| L | W | H | Inch | |||
| S4-1 | 5 | 4-14 | 1.16 | 1.34 | 1.26 | 1.15 |
| S4-2 | 6 | 1.16 | 1.38 | 1.26 | ||
| S4-3 | 7 | 1.57 | 1.26 | 1.26 | ||
| S4-4 | 8 | 2.02 | 1.32 | 1.26 | ||
| S2-1 | 5 | 2-14 | 1.35 | 1.57 | 1.22 | 1.09 |
| S2-2 | 6 | 1.35 | 1.44 | 1.22 | ||
| S2-3 | 7 | 1.91 | 1.44 | 1.22 | ||
| S2-4 | 8 | 2.46 | 1.57 | 1.22 | ||
| S1/0-1 | 5 | 1/0-14 | 1.62 | 1.70 | 1.45 | 1.34 |
| S1/0-2 | 6 | 1.62 | 1.70 | 1.45 | ||
| S1/0-3 | 7 | 2.30 | 1.70 | 1.45 | ||
| S1/0-4 | 8 | 2.96 | 1.70 | 1.49 | ||
| S2/0-1 | 5 | 2/0-6 | 1.65 | 1.71 | 1.52 | 1.29 |
| S2/0-2 | 6 | 1.65 | 1.63 | 1.52 | ||
| S2/0-3 | 7 | 2.32 | 1.63 | 1.52 | ||
| S2/0-4 | 8 | 2.99 | 1.63 | 1.52 | ||
| S3/0-1 | 5 | 3/0-6 | 1.82 | 1.87 | 1.61 | 1.73 |
| S3/0-2 | 6 | 1.82 | 1.87 | 1.61 | ||
| S3/0-3 | 7 | 2.57 | 1.87 | 1.61 | ||
| S3/0-4 | 8 | 3.32 | 1.87 | 1.61 | ||
| S250-1 | 5 | 250-6 | 2.17 | 2.15 | 1.91 | 1.75 |
| S250-2 | 6 | 2.17 | 2.22 | 1.91 | ||
| S250-3 | 7 | 3.07 | 2.22 | 1.91 | ||
| S250-4 | 8 | 3.98 | 2.22 | 1.91 | ||
| S350-1 | 5 | 350-6 | 2.52 | 2.64 | 2.34 | 1.84 |
| S350-2 | 6 | 2.52 | 2.50 | 2.34 | ||
| S350-3 | 7 | 3.52 | 2.50 | 2.34 | ||
| S350-4 | 8 | 4.55 | 2.50 | 3.07 | ||
| S500-1 | 5 | 500-4 | 2.82 | 2.69 | 2.58 | 2.47 |
| S500-2 | 6 | 2.82 | 2.69 | 2.58 | ||
| S500-3 | 7 | 4.00 | 2.69 | 2.58 | ||
| S500-4 | 8 | 5.18 | 2.69 | 2.58 | ||
| S600-1 | 5 | 600-4 | 3.15 | 3.07 | 3.02 | 2.40 |
| S600-2 | 6 | 3.15 | 3.07 | 3.02 | ||
| S600-3 | 7 | 4.49 | 3.07 | 3.02 | ||
| S600-4 | 8 | 5.83 | 3.07 | 3.02 | ||
| S750-1 | 5 | 750-1/0 | 3.43 | 3.98 | 3.53 | 3.20 |
| S750-2 | 6 | 3.43 | 3.84 | 3.53 | ||
| S750-3 | 7 | 4.84 | 3.84 | 3.53 | ||
| S750-4 | 8 | 6.28 | 3.84 | 3.53 | ||
