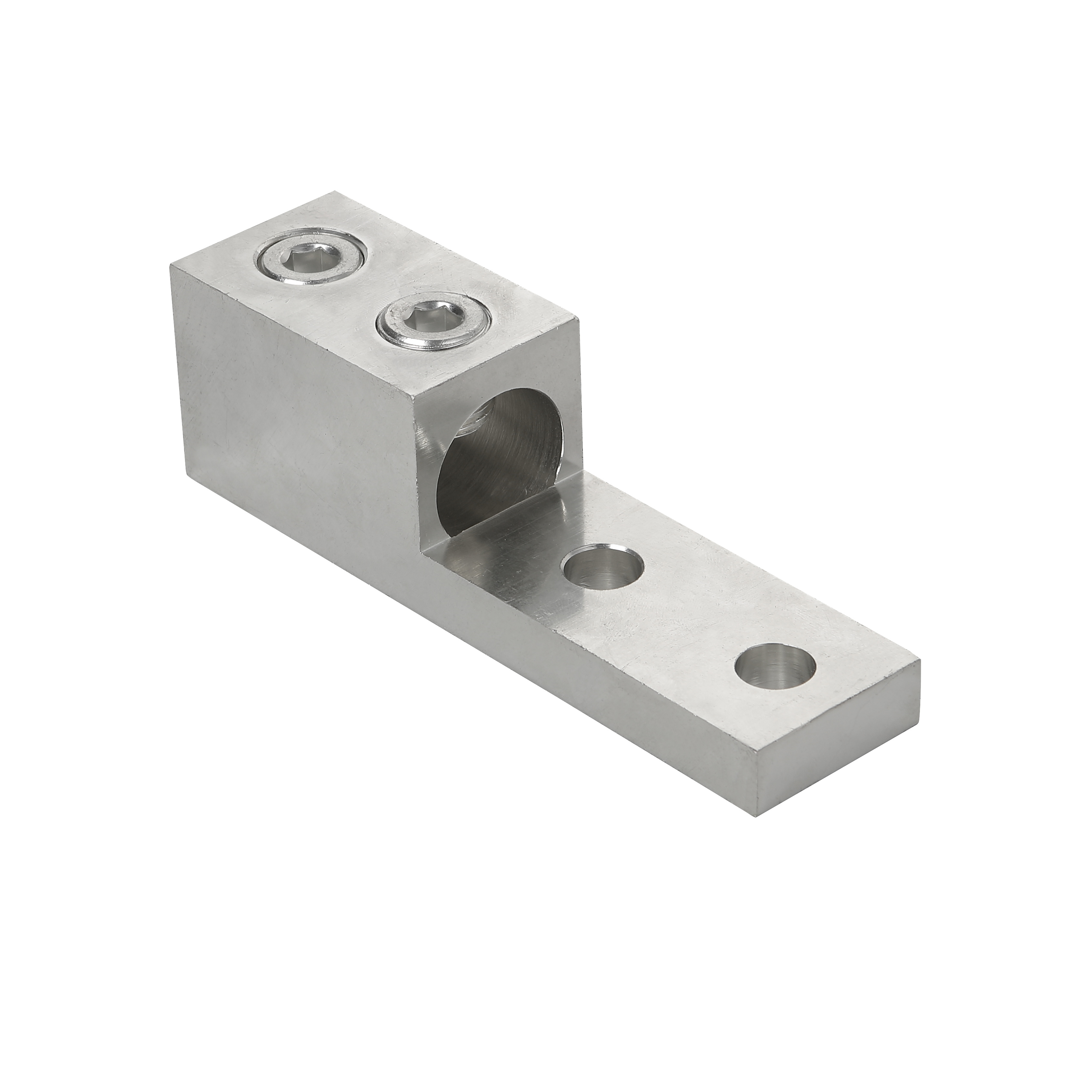

Aluminum Terminal 2 Hole Tin Plated Mechanical Lugs

Material: Aluminum
Surface Treatmen : Tin Plating
Connection Method : Screw Connection
Size : 600LL2 , 800LL2 , 1000LL2 , 1500LL2
Application : For Aluminum and Copper Conductors

  • 600LL2

  • HANYSEN

Availability:
Inquire Add to Basket

Product Description

Aluminum Universal Terminal, 2 Hole 1 Screw, Al/Cu Rated, Tin Plated.


  • Dual Rated Panelboard Lugs

  • High strength extruded aluminum alloy

  • Electro tin-plated for low contact resistance

  • Rated to 35kV

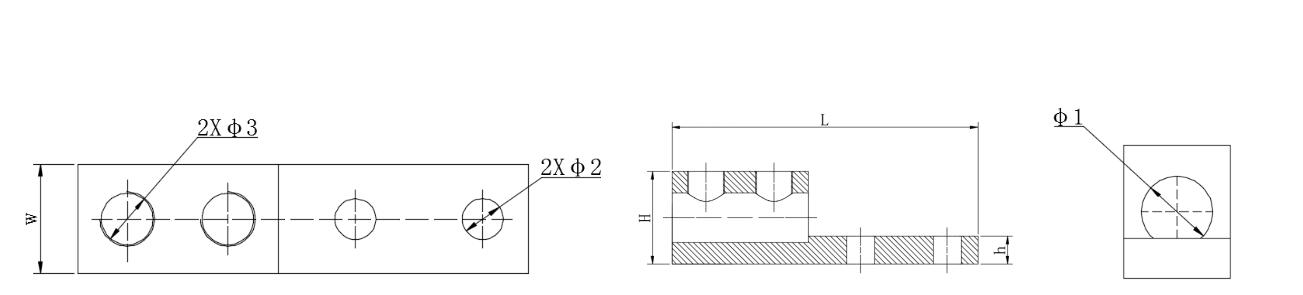

QQ截图20260115144723

CAT#                                                            Dimensions (mm)
L W H h φ1 φ2 φ3
600LL2 139.70 34.93 38.10 9.53 21.00 10.30 20.63
800LL2 157.15 38.10 47.63 14.27 25.40 14.27 19.05
1000LL2 157.15 41.28 47.63 14.27 31.75 14.27 22.23
1500LL2 168.28 50.80 50.17 19.05 38.10 14.27 25.40

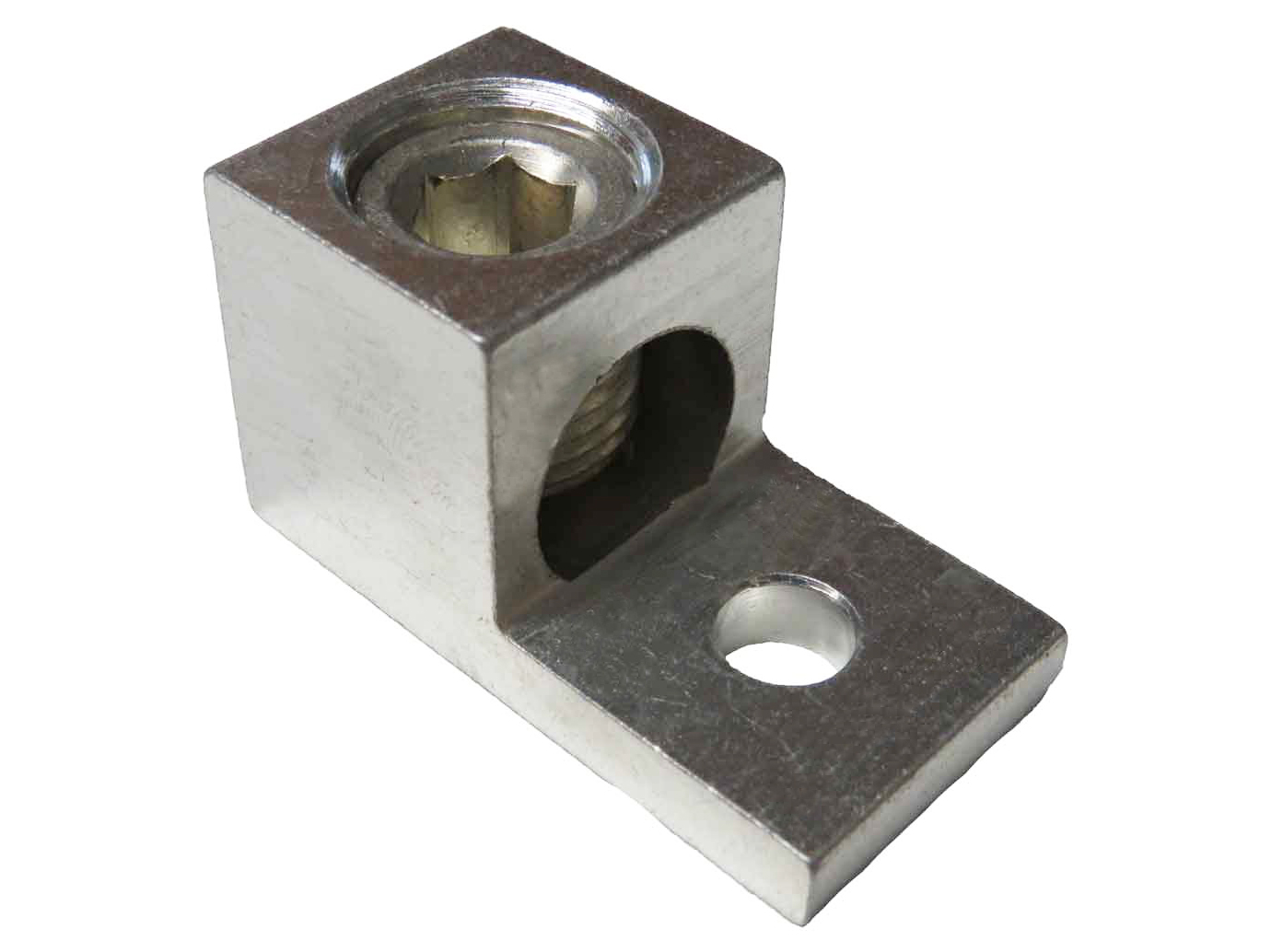

HTA

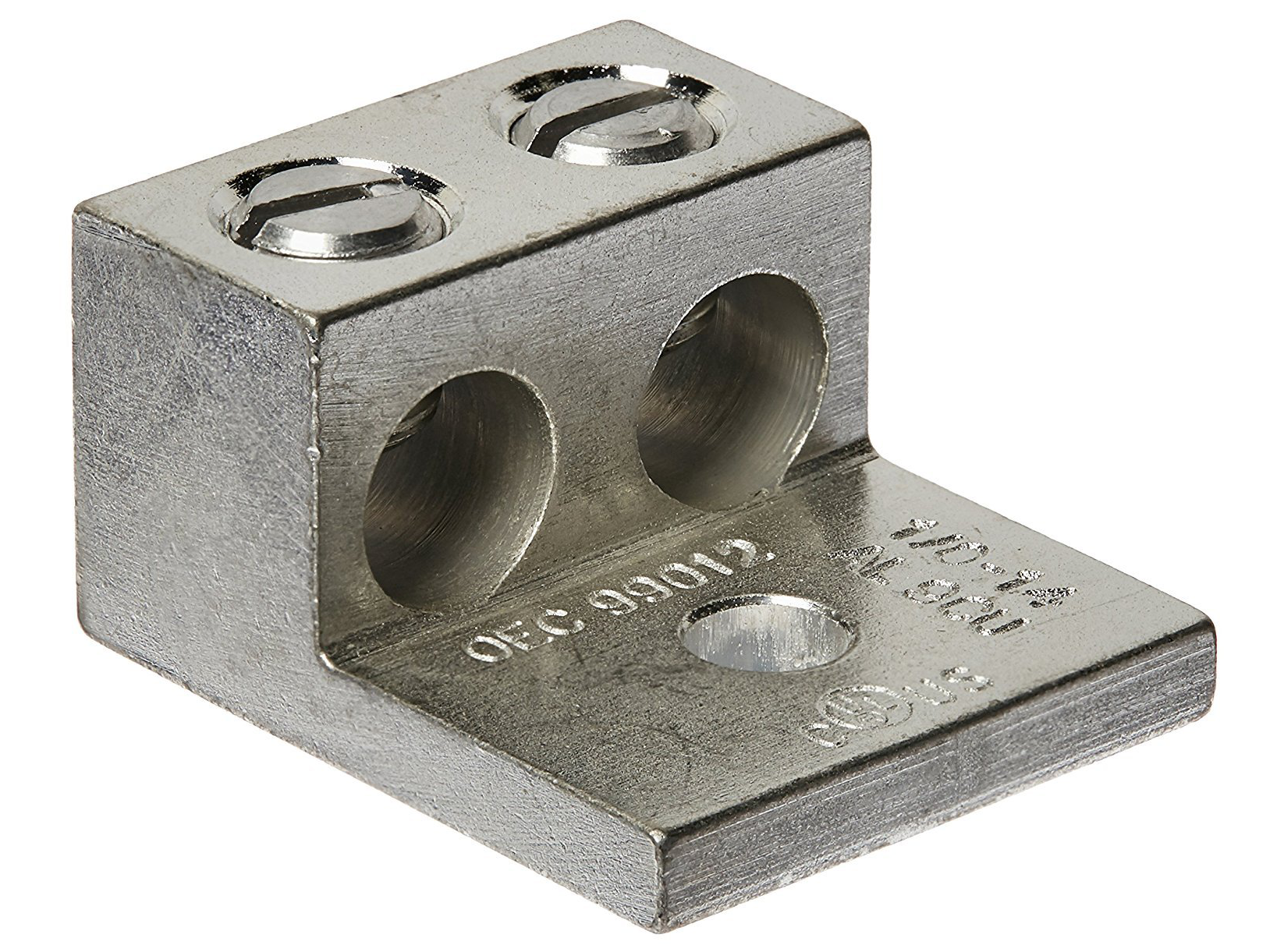

Terminal LugHAU
