GPD2
HANYSEN
Product Description
Application

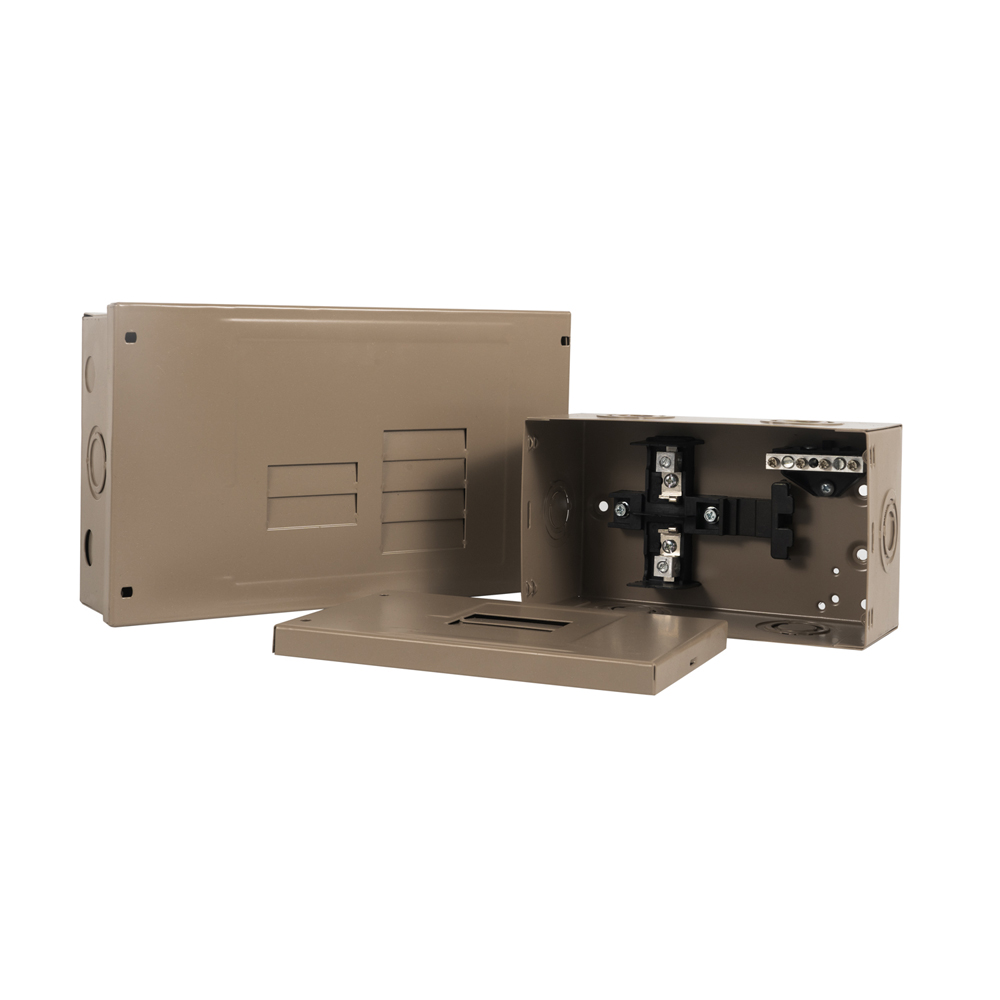

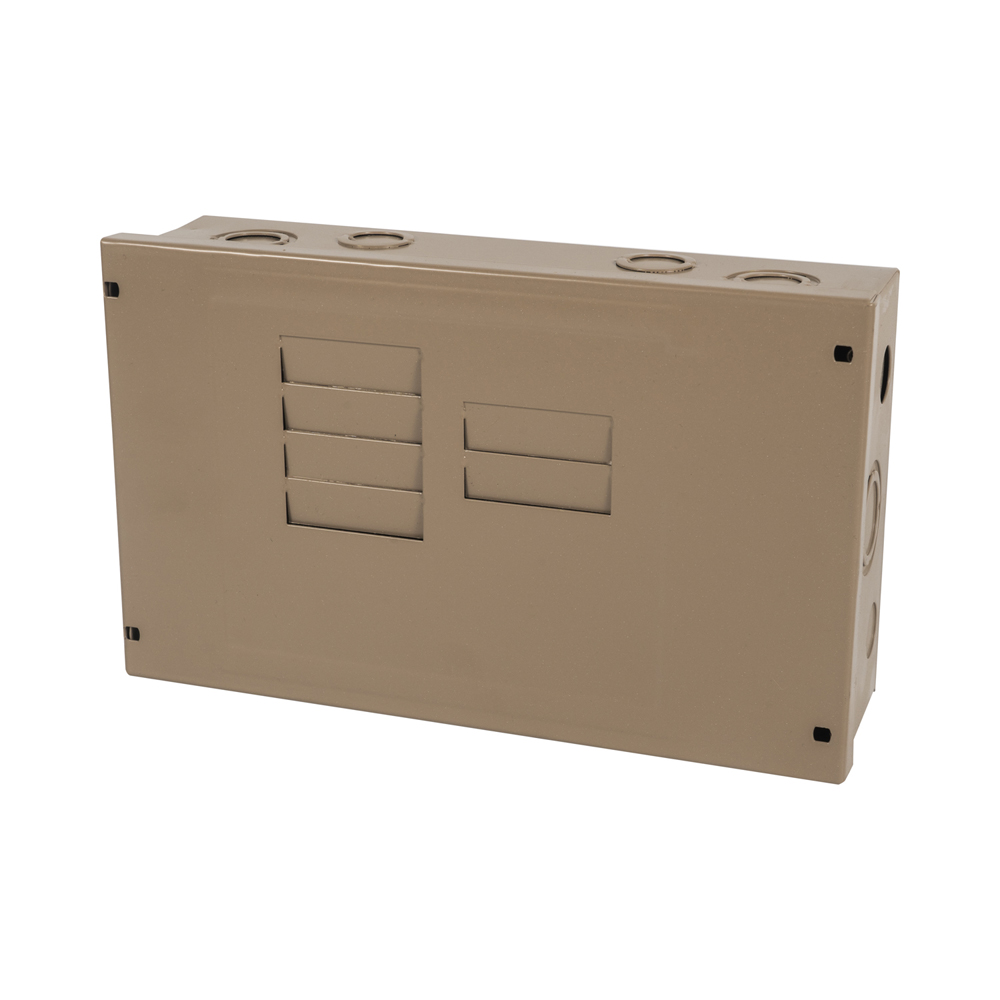

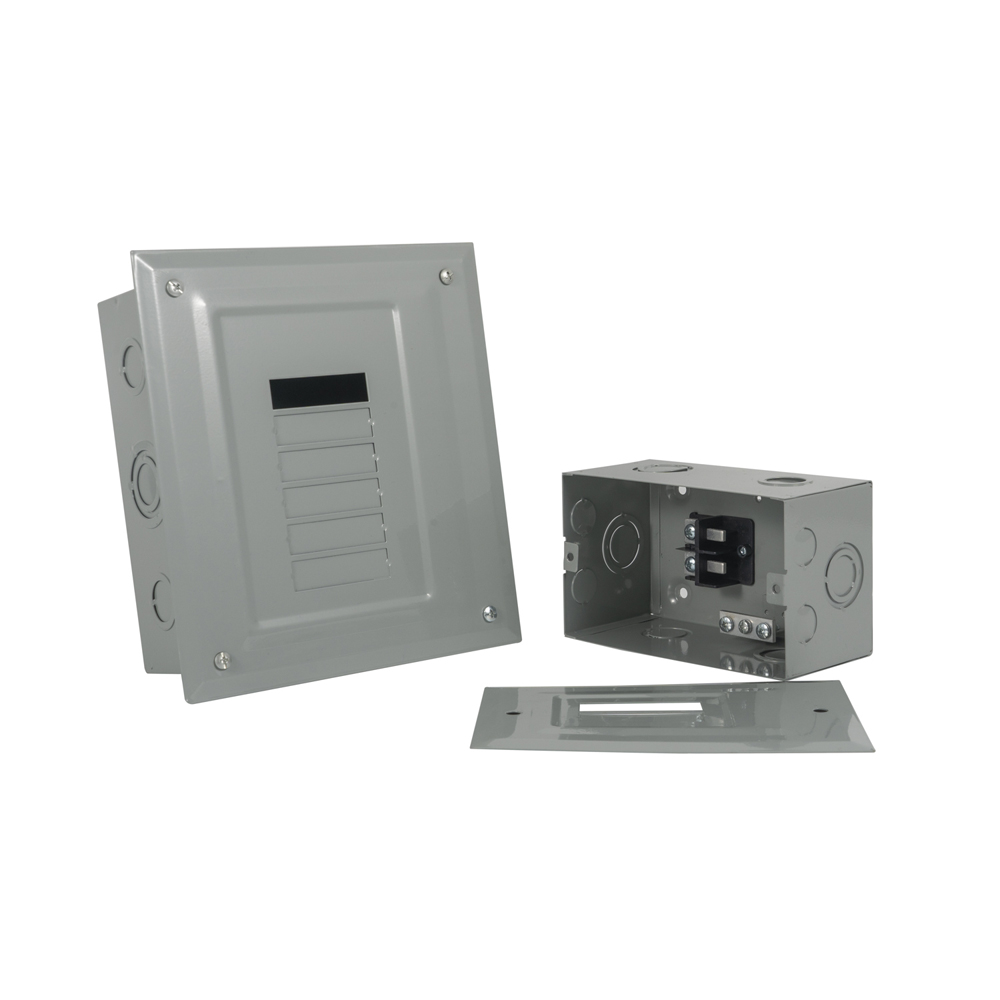

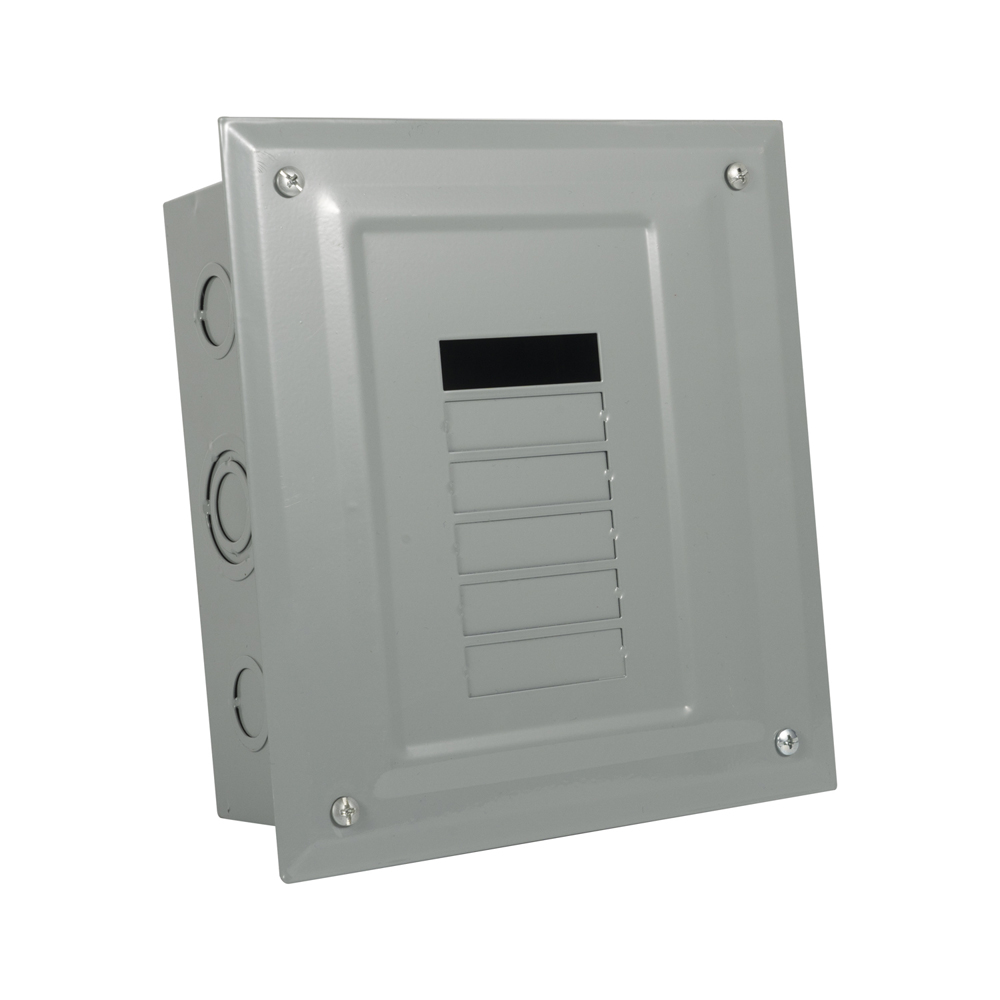

HANYSEN Load Centers are designed for safe and reliable distribution and control of electrical power as service entrance equipment in residential.
Features
• Manufactured from high-quality steel sheet with a thickness of 0.6–1.2 mm
• Matt-finish polyester powder-coated surface
• Knockouts provided on all sides of the enclosure
• Wider enclosure allows easier wiring and improved heat dissipation
• Cable entry knockouts provided on the top and bottom of the enclosure
• Available in both flush-mounted and surface-mounted configurations
| CAT# | Dimensions (mm) | Rated Current | Rated Voltage | Rated Circuits | Rated Phase | ||
| Height | Width | Depth | |||||

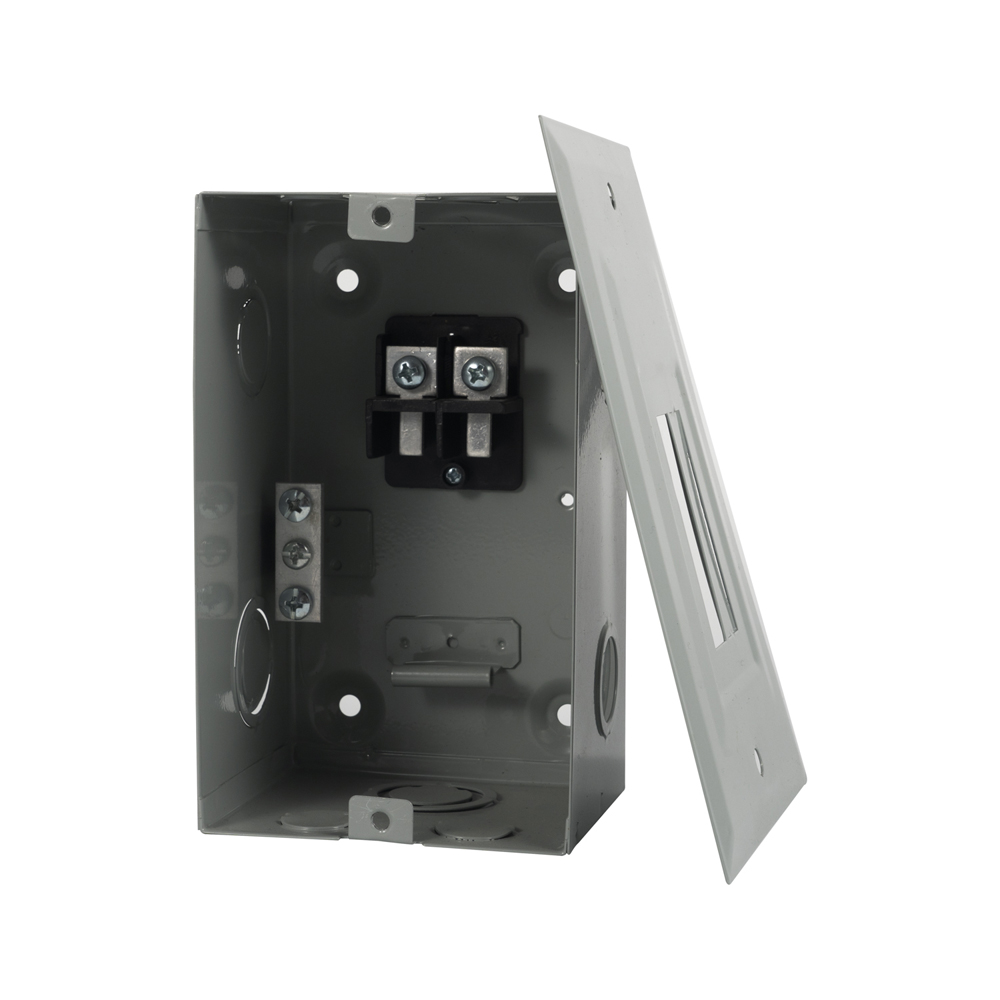

| GPD2 | 185 | 123 | 80 | 50A | 120/240V | 2 | Single |
| GPD4 | 211 | 191 | 80 | 60A | 120/240V | 4 | Single |
| GPD6 | 205 | 190 | 80 | 100A | 120/240V | 6 | Single |
| GPD8 | 162 | 100 | 80 | 100A | 120/240V | 8 | Single |
