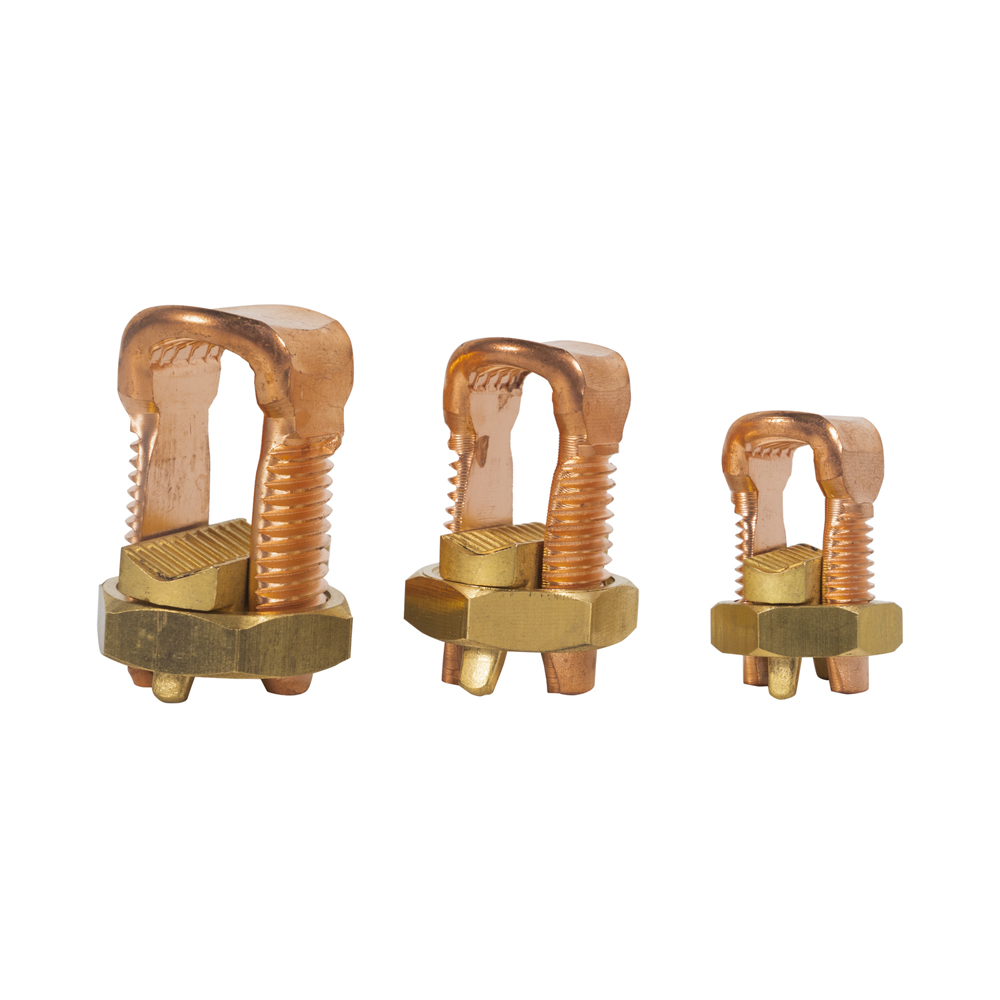

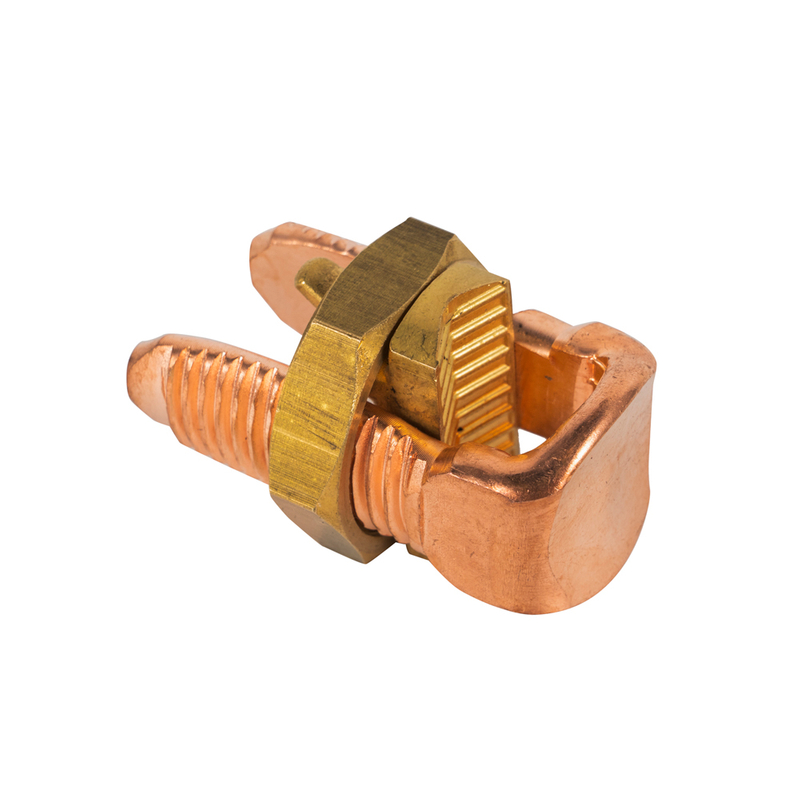

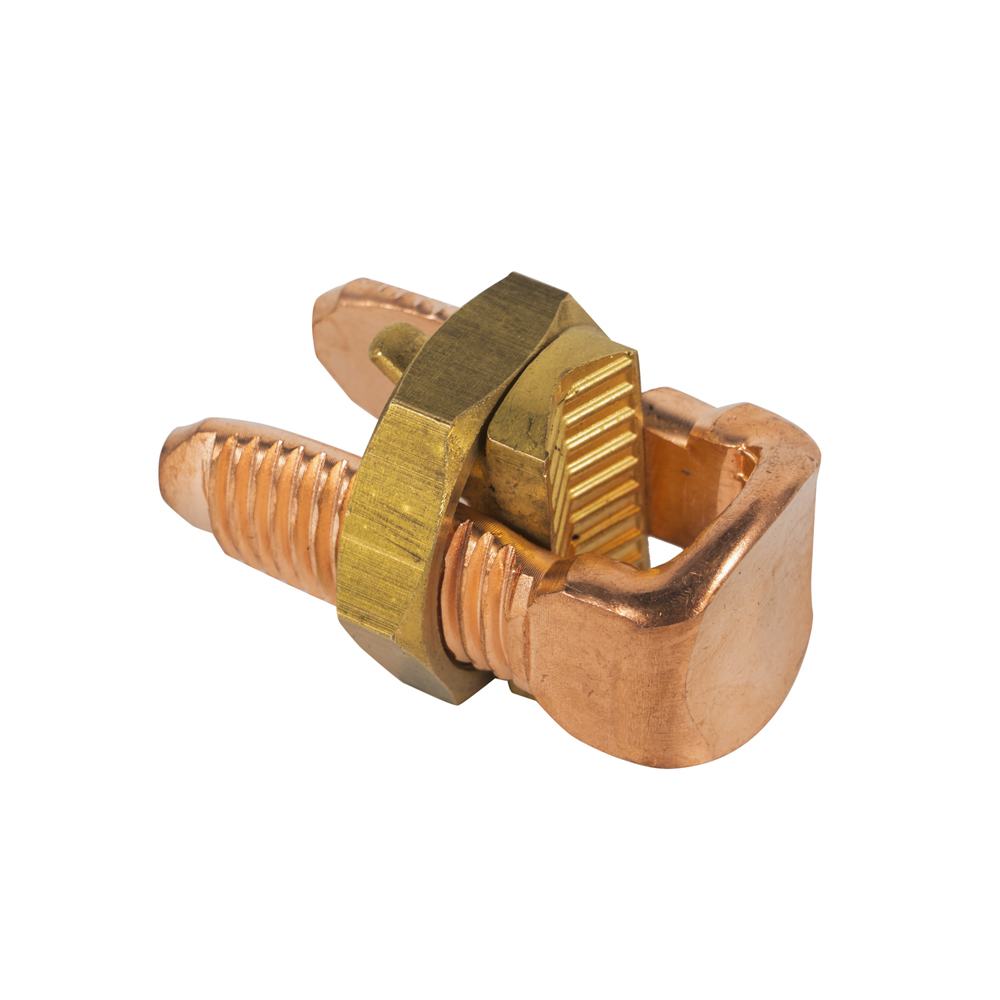

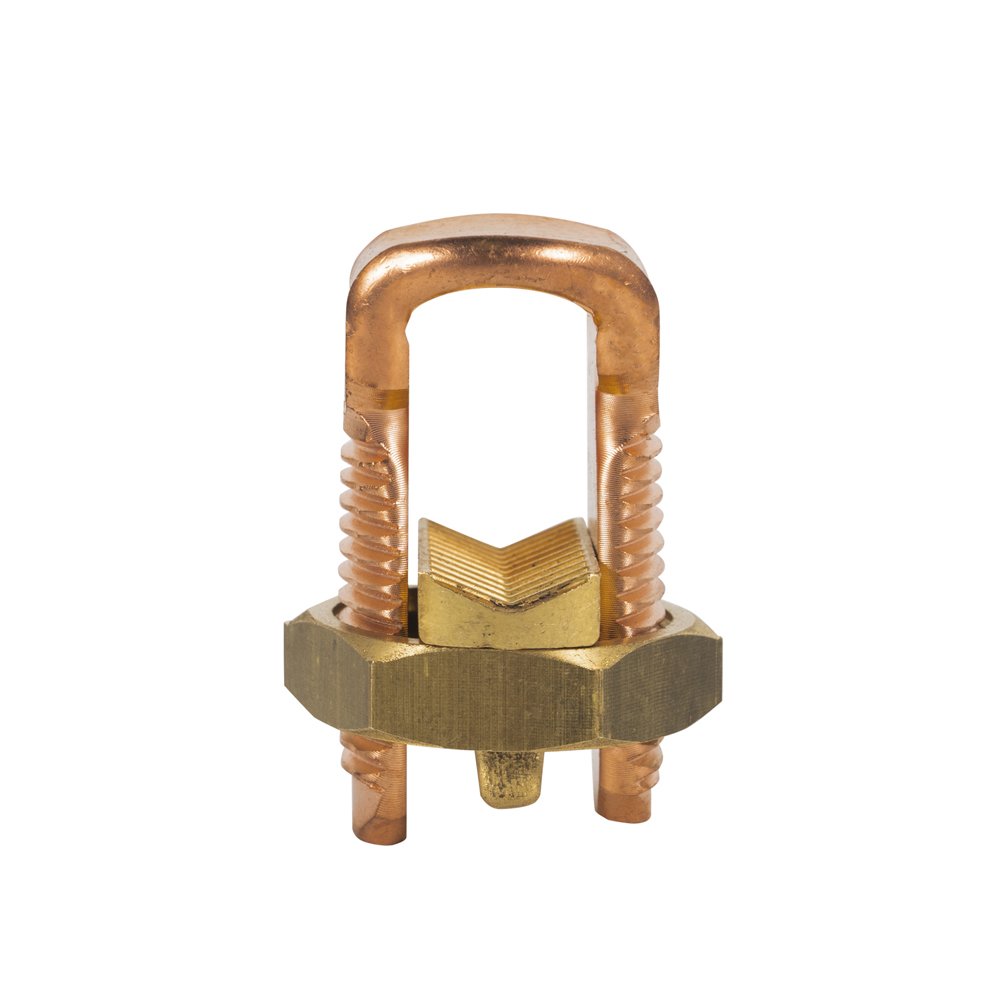

SE17
Product Description
Applications
. Joining copper to copper, copper to aluminum, or aluminum to aluminum conductors.
. Grounding and bonding applications.
. Tapping conductors in panels, enclosures, and overhead lines.

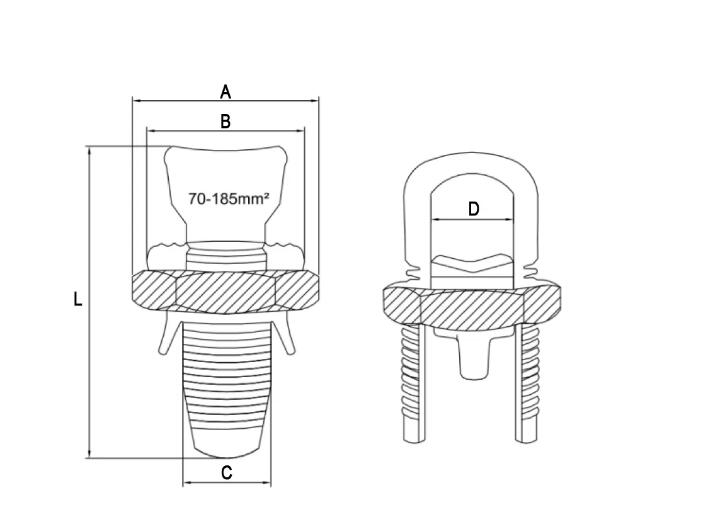

CAT# | Conductor | Dimension(mm) | ||||||
Natural Color | Tin Plated | L | A | B | C | D | ||
SE17 | TSE17 | 10mm² | 8AWG | 27.9 | 19.2 | 16.9 | 7.9 | 6.0 |
SE20 | TSE20 | 10-16mm² | 8-6AWG | 28.7 | 19.7 | 17.4 | 9.4 | 6.2 |
SE22 | TSE22 | 16-25mm² | 6-4AWG | 30.2 | 20.8 | 18.3 | 10.3 | 7.1 |
SE23 | TSE23 | 25-50mm² | 6AWG-1/0 | 35.6 | 22.1 | 22.1 | 12.2 | 9.5 |
SE27 | TSE27 | 50-95mm² | 1/0-3/0 | 44.7 | 27.0 | 26.1 | 14.8 | 12.6 |
SE29 | TSE29 | 50-120mm² | 3/0-250Kcmil | 50.6 | 36.6 | 32.6 | 17.2 | 15.2 |
SE31 | TSE31 | 70-185mm² | 2/0-250Kcmil | 62.2 | 41.2 | 36.1 | 17.7 | 19.0 |
SE34 | TSE34 | 70-240mm² | 2/0-500Kcmil | 66.3 | 45.6 | 40.4 | 22.1 | 21.8 |
