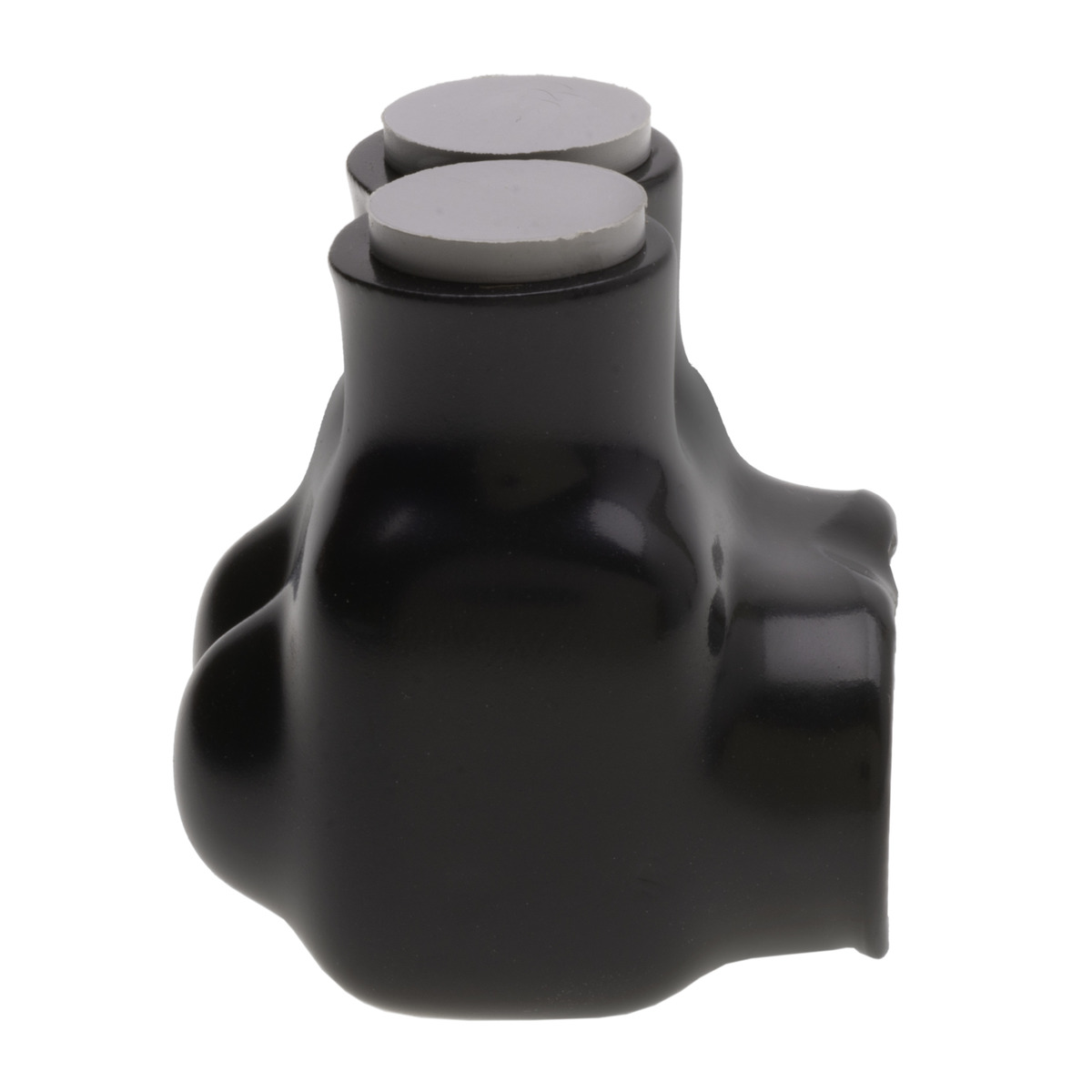

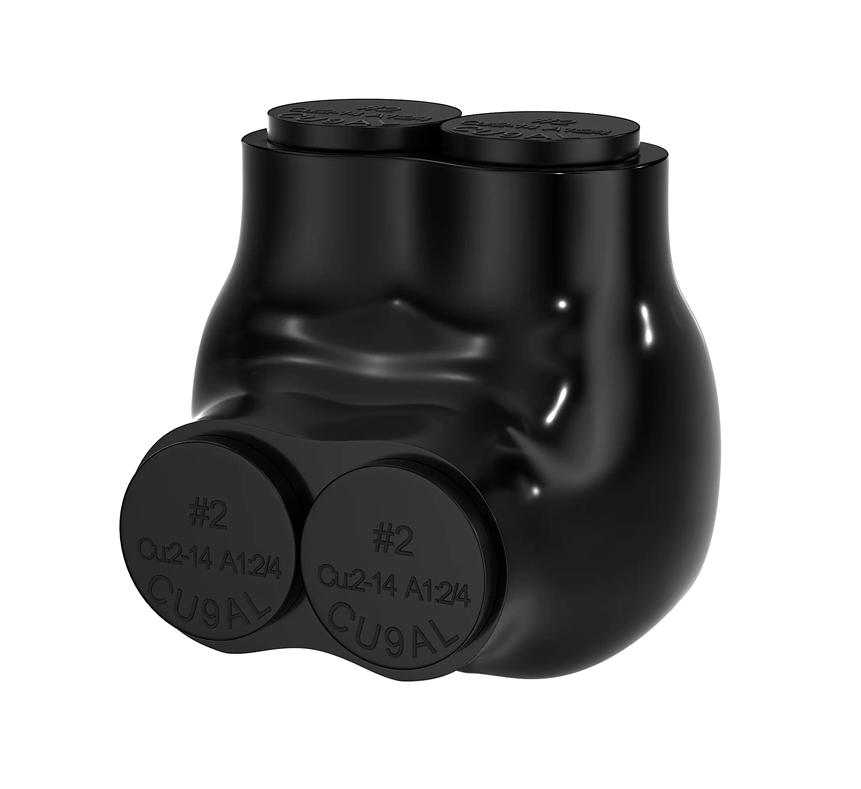

Product Description

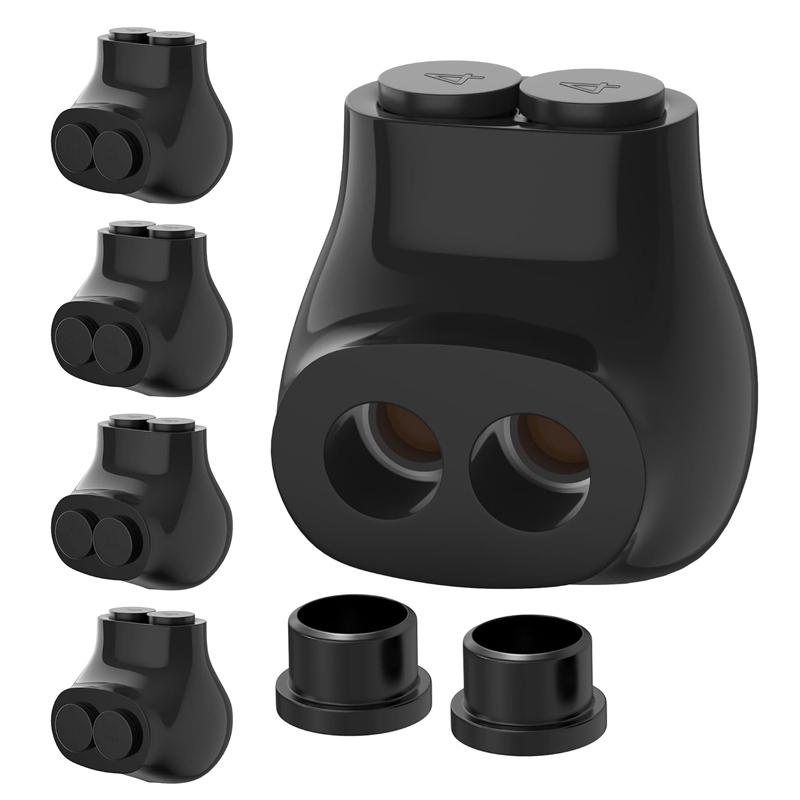

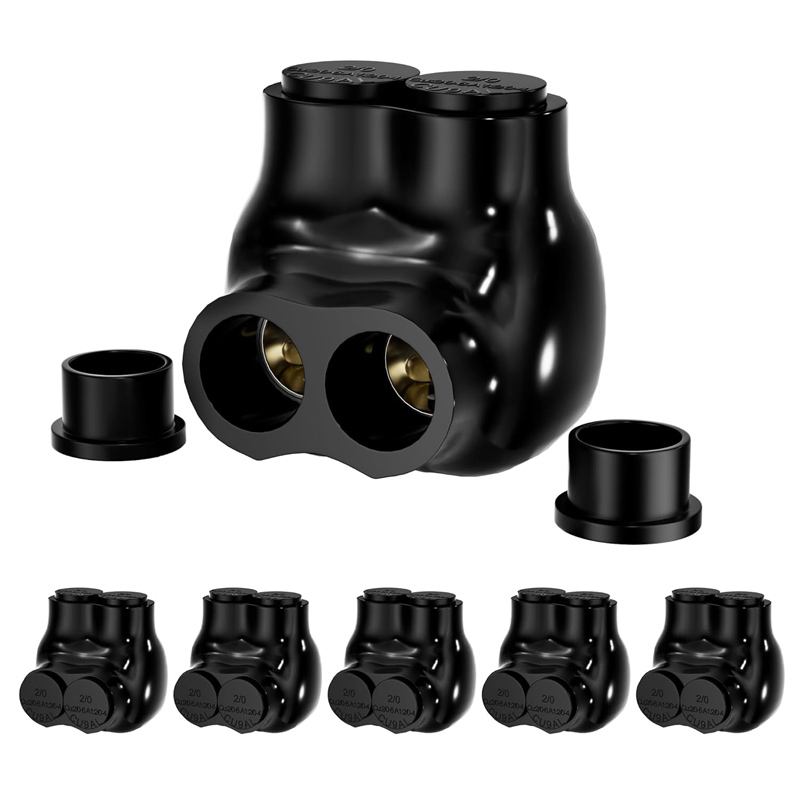

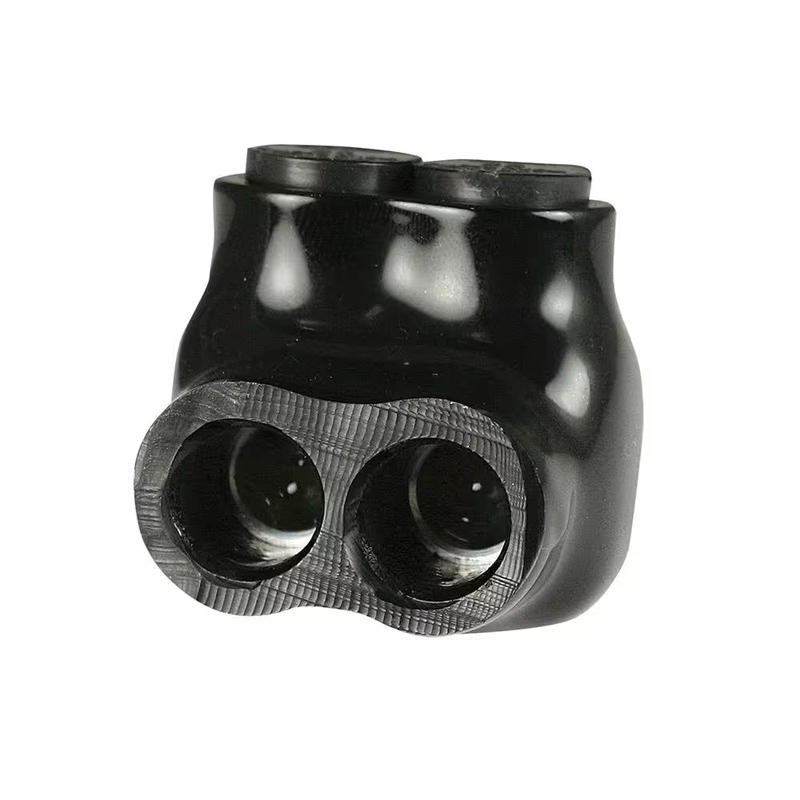

Features: HANYSEN Pre-Insulated Connectors used for copper or aluminum conductors . Easier installation without tape or additional tools at wet or dry locations. Removable plugs prevent infiltration of dirt or debris .High dielectric strength insulation is abrassion, chemical and UV resistant.
Material : 6061-T6 Aluminum
Insulation : Rugged High-Dielectric Plastisol Dipped Coating
Temp-Rating : -45 °C to 90 °C
Max Voltage : 600V
Color : Black
Wire Ranges : #14 -750 MCM
UL : 486 Dual Rated CU9AL. ANSI C119.4

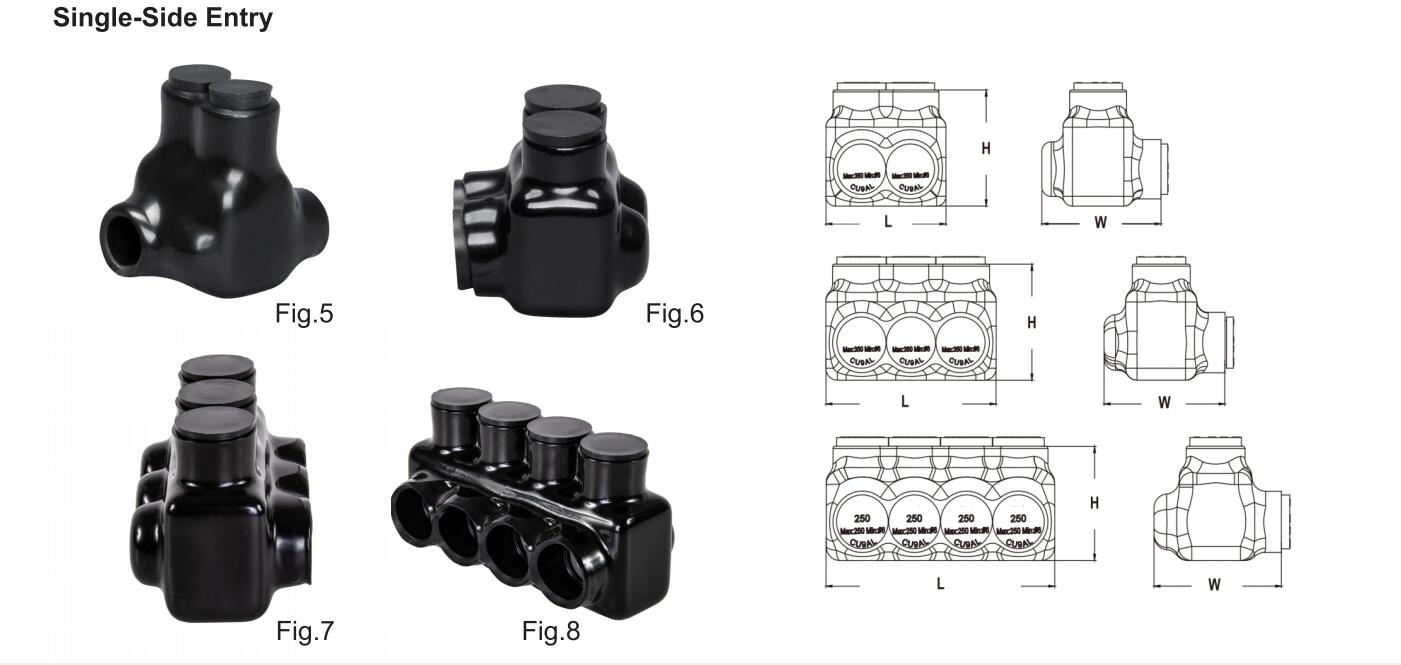

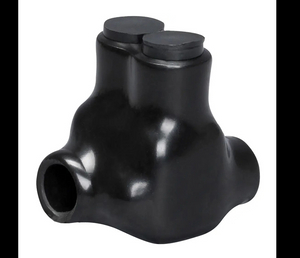

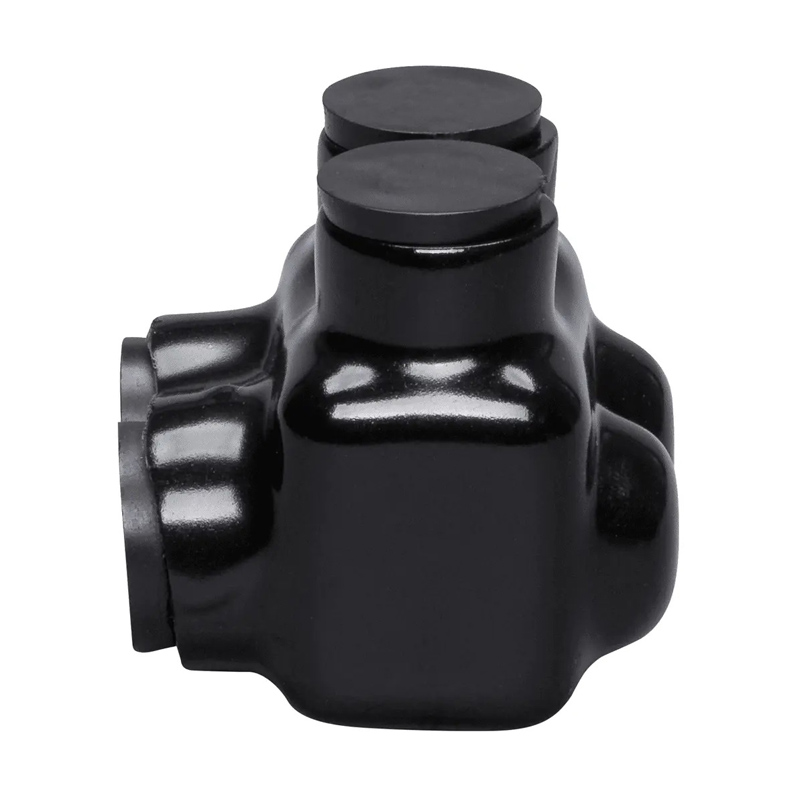

| CAT# | Fig. No. | Wire Range | Size (In.) | Strip Length | ||
| L | W | H | Inch | |||
| S4-1 | 5 | 4-14 | 1.16 | 1.34 | 1.26 | 1.15 |
| S4-2 | 6 | 1.16 | 1.38 | 1.26 | ||
| S4-3 | 7 | 1.57 | 1.26 | 1.26 | ||
| S4-4 | 8 | 2.02 | 1.32 | 1.26 | ||
| S2-1 | 5 | 2-14 | 1.35 | 1.57 | 1.22 | 1.09 |
| S2-2 | 6 | 1.35 | 1.44 | 1.22 | ||
| S2-3 | 7 | 1.91 | 1.44 | 1.22 | ||
| S2-4 | 8 | 2.46 | 1.57 | 1.22 | ||
| S1/0-1 | 5 | 1/0-14 | 1.62 | 1.70 | 1.45 | 1.34 |
| S1/0-2 | 6 | 1.62 | 1.70 | 1.45 | ||
| S1/0-3 | 7 | 2.30 | 1.70 | 1.45 | ||
| S1/0-4 | 8 | 2.96 | 1.70 | 1.49 | ||
| S2/0-1 | 5 | 2/0-6 | 1.65 | 1.71 | 1.52 | 1.29 |
| S2/0-2 | 6 | 1.65 | 1.63 | 1.52 | ||
| S2/0-3 | 7 | 2.32 | 1.63 | 1.52 | ||
| S2/0-4 | 8 | 2.99 | 1.63 | 1.52 | ||
| S3/0-1 | 5 | 3/0-6 | 1.82 | 1.87 | 1.61 | 1.73 |
| S3/0-2 | 6 | 1.82 | 1.87 | 1.61 | ||
| S3/0-3 | 7 | 2.57 | 1.87 | 1.61 | ||
| S3/0-4 | 8 | 3.32 | 1.87 | 1.61 | ||
| S250-1 | 5 | 250-6 | 2.17 | 2.15 | 1.91 | 1.75 |
| S250-2 | 6 | 2.17 | 2.22 | 1.91 | ||
| S250-3 | 7 | 3.07 | 2.22 | 1.91 | ||
| S250-4 | 8 | 3.98 | 2.22 | 1.91 | ||
| S350-1 | 5 | 350-6 | 2.52 | 2.64 | 2.34 | 1.84 |
| S350-2 | 6 | 2.52 | 2.50 | 2.34 | ||
| S350-3 | 7 | 3.52 | 2.50 | 2.34 | ||
| S350-4 | 8 | 4.55 | 2.50 | 3.07 | ||
| S500-1 | 5 | 500-4 | 2.82 | 2.69 | 2.58 | 2.47 |
| S500-2 | 6 | 2.82 | 2.69 | 2.58 | ||
| S500-3 | 7 | 4.00 | 2.69 | 2.58 | ||
| S500-4 | 8 | 5.18 | 2.69 | 2.58 | ||
| S600-1 | 5 | 600-4 | 3.15 | 3.07 | 3.02 | 2.40 |
| S600-2 | 6 | 3.15 | 3.07 | 3.02 | ||
| S600-3 | 7 | 4.49 | 3.07 | 3.02 | ||
| S600-4 | 8 | 5.83 | 3.07 | 3.02 | ||
| S750-1 | 5 | 750-1/0 | 3.43 | 3.98 | 3.53 | 3.20 |
| S750-2 | 6 | 3.43 | 3.84 | 3.53 | ||
| S750-3 | 7 | 4.84 | 3.84 | 3.53 | ||
| S750-4 | 8 | 6.28 | 3.84 | 3.53 | ||
