Product Description

Product Description

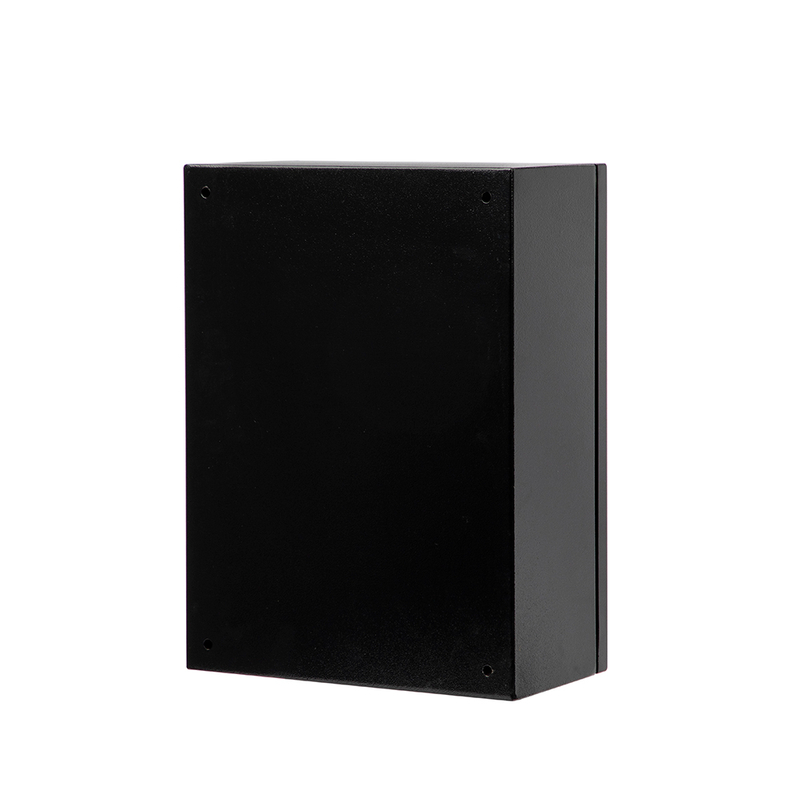

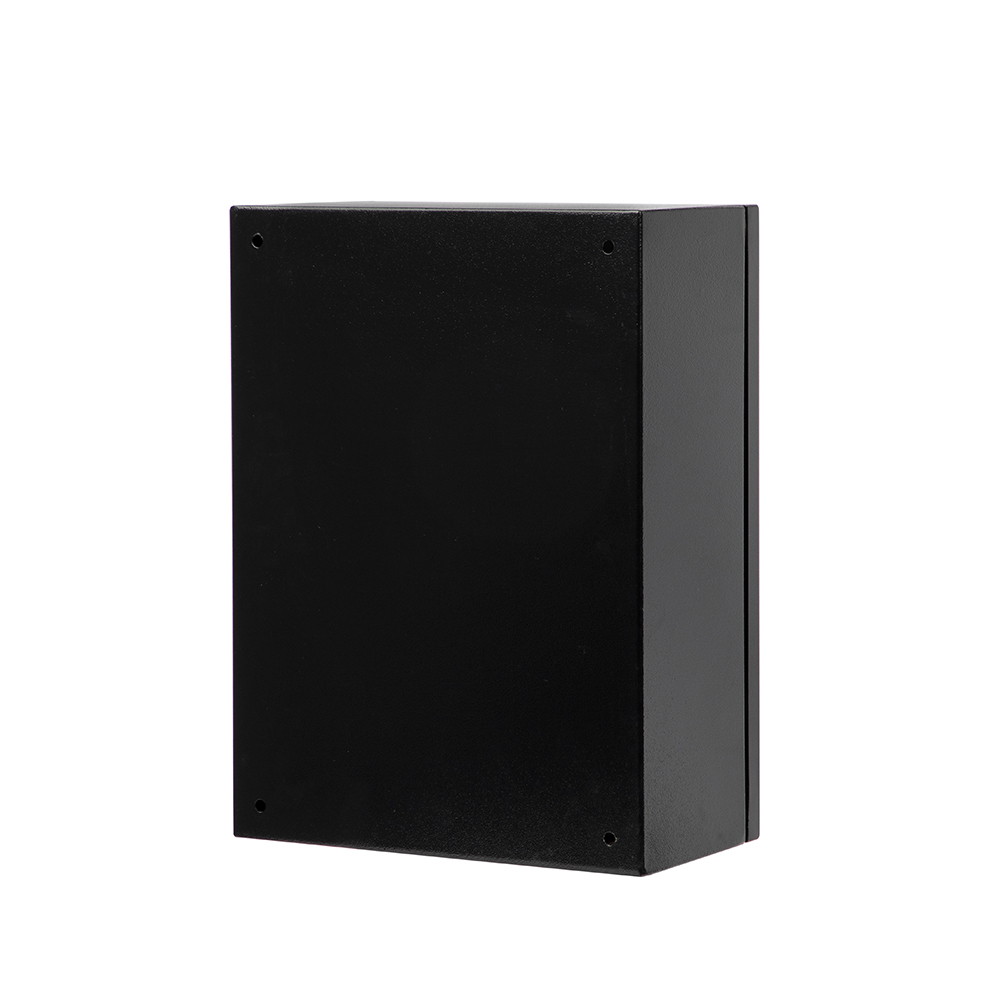

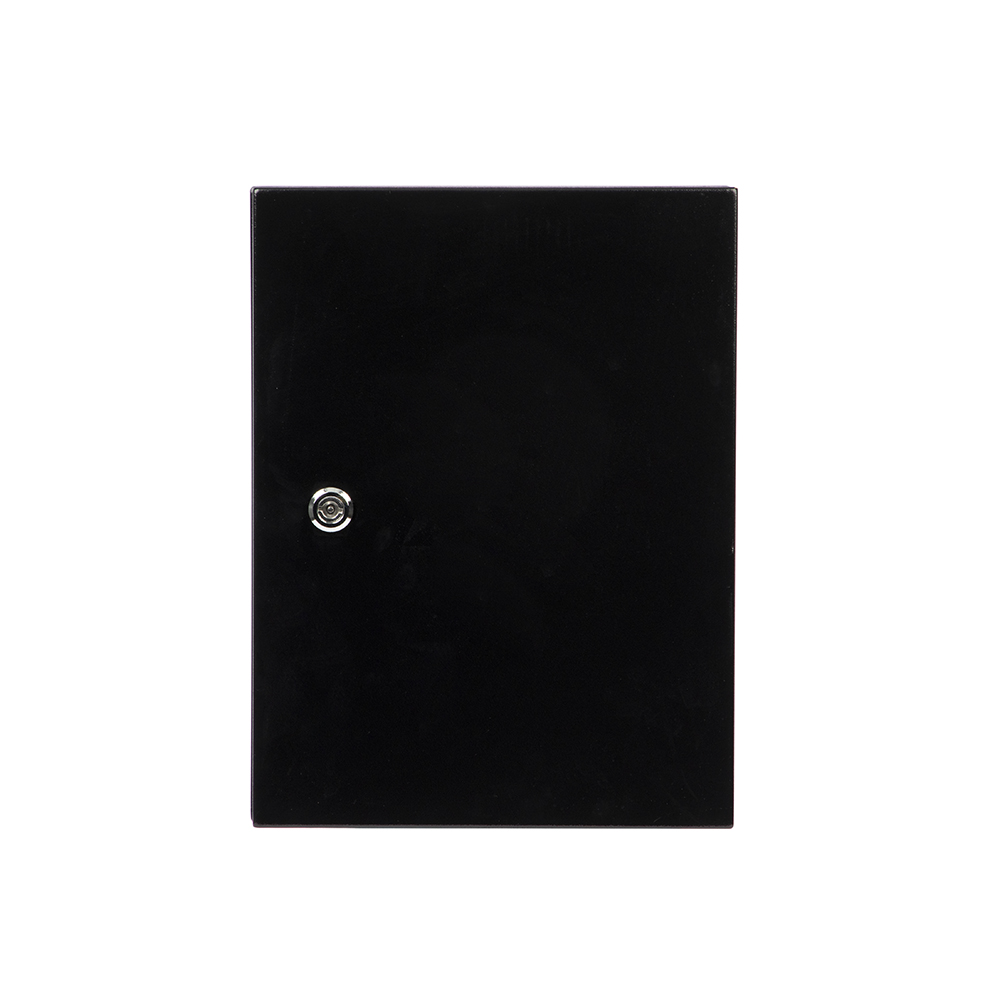

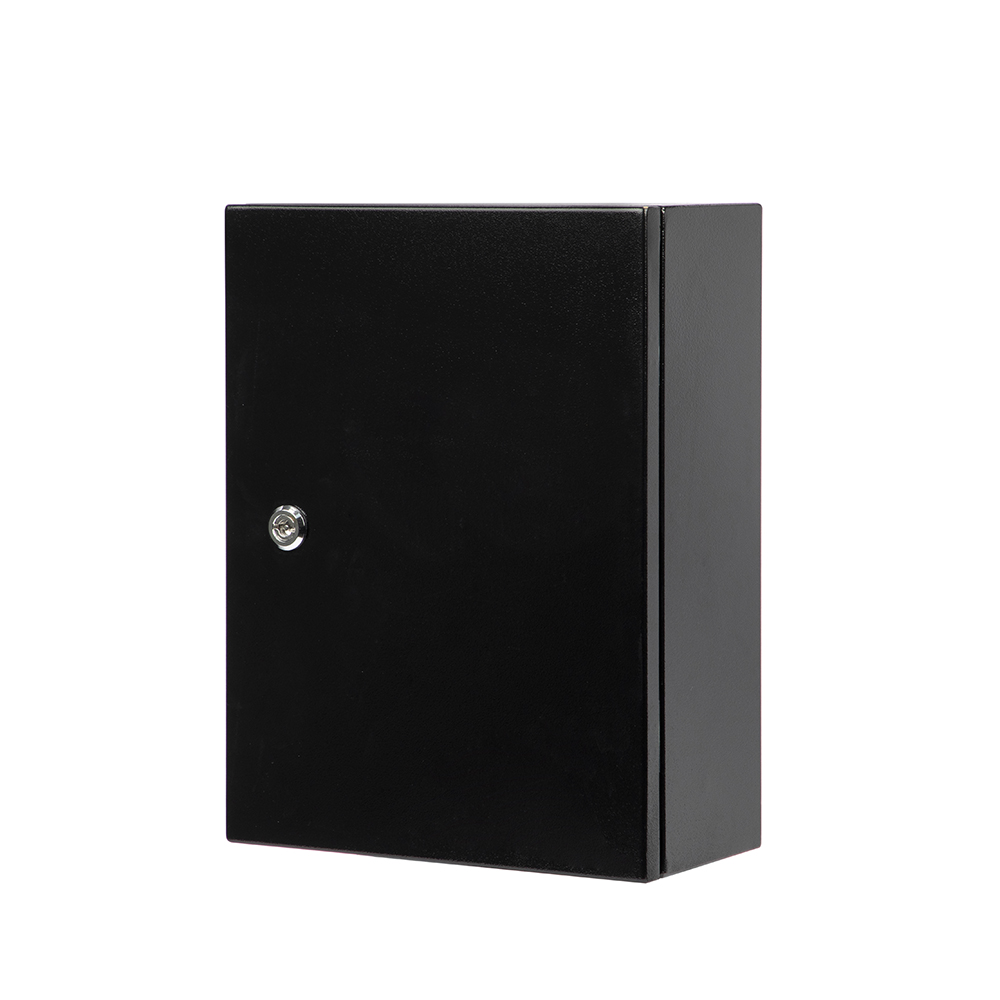

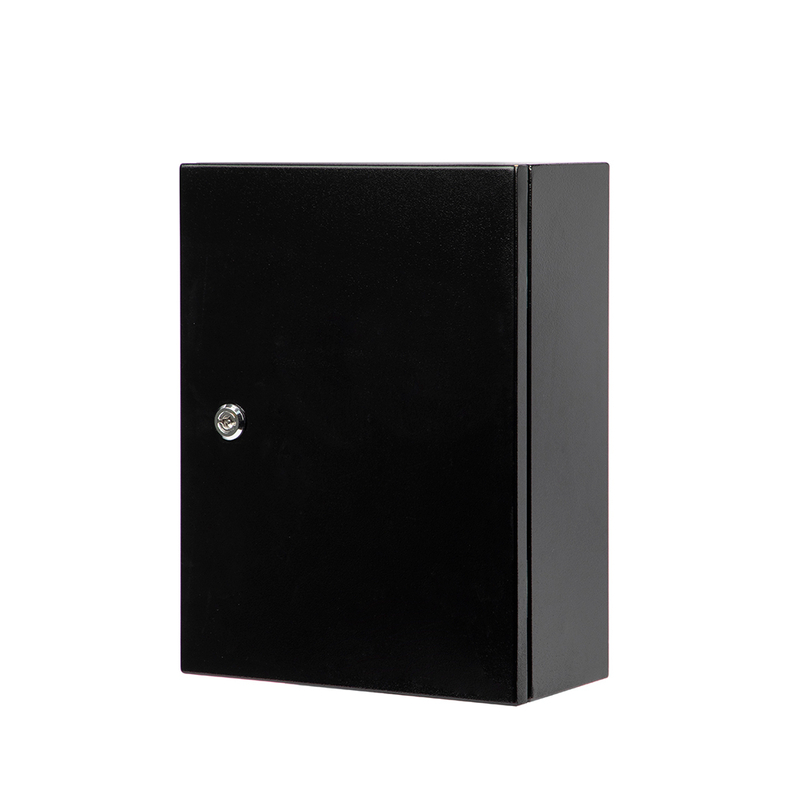

Single Door Wall Mounting Enclosure

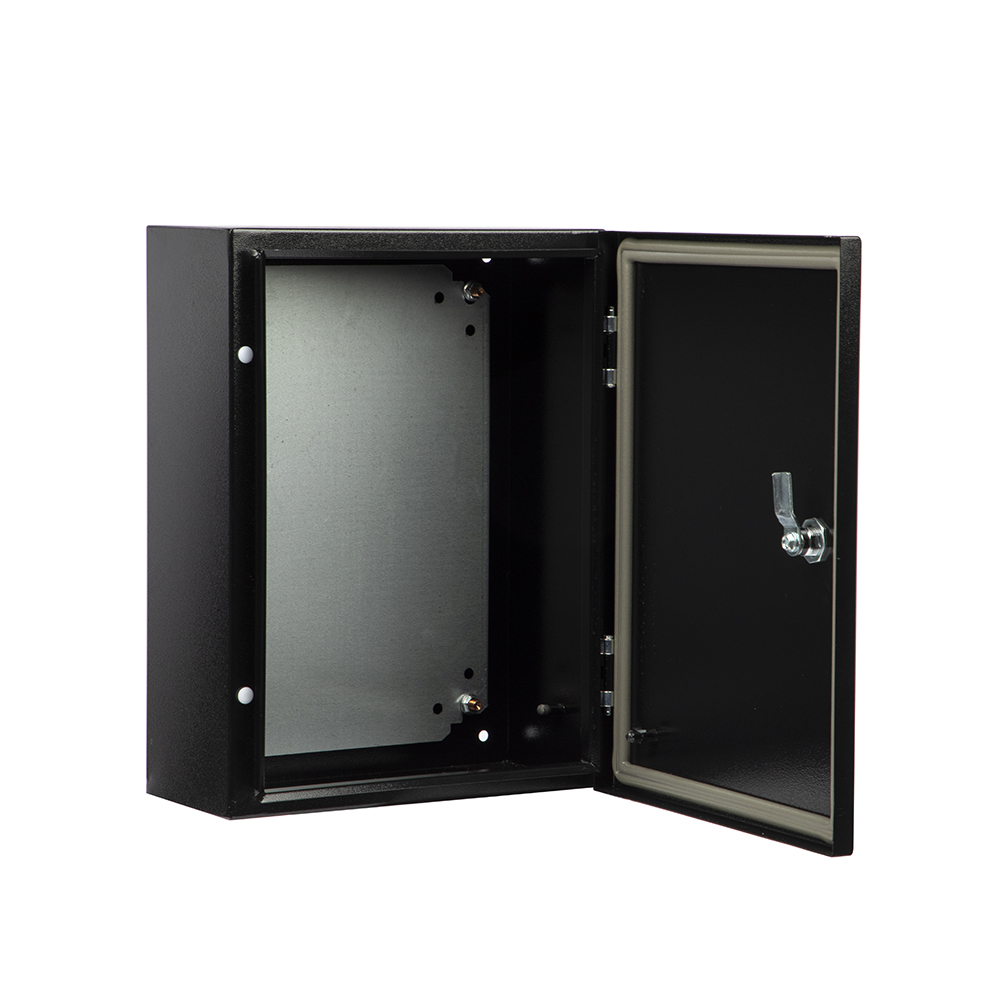

Features: HANYSEN Wall Mounting Enclosure using PU foam sealing gasket inside to prevent dust and water, 120° door opening angle by plugging hings.

Standard Configuration: Mounting Plate, Locking System, Gland Plate, Sealing Gasket and Fixing Accesories.

Material: For heights below 800 mm, the main body and door are constructed from 1.2 mm cold-rolled steel; for heights of 800 mm and above, 1.5 mm cold-rolled steel is used; For heights below 800 mm, the mounting plate is constructed from 1.5 mm cold-rolled steel; for heights of 800 mm and above, 2.0 mm cold-rolled steel is used.

Surface: Epoxy Thermosetting Powder Coating, Textured Finish.

Protection Degree: IP65

CAT#	External Dimensions(mm)			Gland Plate Dimensions(mm)	Mounting Plate Dimensions(mm)
CAT#	Height	Width	Depth	Gland Plate Dimensions(mm)	Mounting Plate Dimensions(mm)
PT2020/15	200	200	150	169*89	150*150
PT2520/15	250	200	150	169*89	200*150
PT3020/15	300	200	150	169*89	250*150
PT3025/15	300	250	150	219*92	250*200
PT3025/20	300	250	200	219*92	250*200
PT3030/15	300	300	150	219*92	250*250
PT3030/20	300	300	200	269*95	250*250
PT3030/25	300	300	250	269*95	250*250
PT4030/15	400	300	150	219*92	350*250
PT4030/20	400	300	200	269*95	350*250
PT4030/25	400	300	250	269*95	350*250
PT4030/30	400	300	300	269*95	350*250
PT4040/15	400	400	150	219*92	350*350
PT4040/20	400	400	200	366*135	350*350
PT4040/25	400	400	250	366*135	350*350
PT4040/30	400	400	300	366*135	350*350
PT5030/15	500	300	150	219*92	450*250
PT5030/20	500	300	200	269*95	450*250
PT5030/25	500	300	250	269*95	450*250
PT5040/15	500	400	150	219*92	450*350
PT5040/20	500	400	200	366*135	450*350
PT5040/25	500	400	250	366*135	450*350
PT5040/30	500	400	300	366*135	450*350
PT5050/20	500	500	200	366*135	450*450
PT5050/25	500	500	250	366*135	450*450
PT5050/30	500	500	300	366*135	450*450
PT6040/15	600	400	150	219*92	550*350
PT6040/20	600	400	200	366*135	550*350
PT6040/25	600	400	250	366*135	550*350
PT6040/30	600	400	300	366*135	550*350
PT6050/15	600	500	150	219*92	550*450
PT6050/20	600	500	200	366*135	550*450
PT6050/25	600	500	250	366*135	550*450
PT6050/30	600	500	300	366*135	550*450
PT6060/15	600	600	150	219*92	550*550
PT6060/20	600	600	200	366*135	550*550
PT6060/25	600	600	250	366*135	550*550
PT6060/30	600	600	300	366*135	550*450
PT7050/15	700	500	150	219*92	650*450
PT7050/20	700	500	200	366*135	650*450
PT7060/20	700	600	200	366*135	650*550
PT7060/25	700	600	250	366*135	650*550
PT7060/30	700	600	300	366*135	650*550
PT8060/20	800	600	200	366*135	750*550
PT8060/25	800	600	250	366*135	750*550
PT8060/30	800	600	300	366*135	750*550
PT8080/20	800	800	200	2 x 458*134	750*750
PT8080/25	800	800	250	2 x 458*134	750*750
PT8080/30	800	800	300	2 x 458*134	750*750
PT10060/20	1000	600	200	366*135	950*550
PT10060/25	1000	600	250	366*135	950*550
PT10060/30	1000	600	300	366*135	950*550
PT10070/20	1000	700	200	366*135	950*650
PT10080/20	1000	800	200	2 x 458*134	950*750
PT10080/25	1000	800	250	2 x 458*134	950*750
PT10080/30	1000	800	300	2 x 458*134	950*750
PT10080/40	1000	800	400	2 x 458*134	950*750
PT100100/25	1000	1000	250	2 x 458*134	950*950
PT100100/30	1000	1000	300	2 x 458*134	950*950
PT12060/20	1200	600	200	366*135	1150*550
PT12060/25	1200	600	250	366*135	1150*550
PT12060/30	1200	600	300	366*135	1150*550
PT12080/20	1200	800	200	2 x 458*134	1150*750
PT12080/25	1200	800	250	2 x 458*134	1150*750
PT12080/30	1200	800	300	2 x 458*134	1150*750
PT12080/40	1200	800	400	2 x 458*134	1150*750
PT120100/25	1200	1000	250	2 x 458*134	1150*950
PT120100/30	1200	1000	300	2 x 458*134	1150*950
PT120100/40	1200	1000	400	2 x 458*134	1150*950
PT14060/30	1400	600	300	366*135	1350*550
PT14080/30	1400	800	300	2 x 458*134	1350*750
PT14080/40	1400	800	400	2 x 458*134	1350*750
PT140100/30	1400	1000	300	2 x 458*134	1350*950
PT140120/30	1400	1200	300	2 x 458*134	1350*1150
